2MN/2N1
1-5-40
1-5-6 Fuser section
(1) Detaching and refitting the fuser unit
Procedure
1. Pull out the paper conveying unit.
2. Remove the screw and then the fuser
wire cover.
3. Remove two connectors

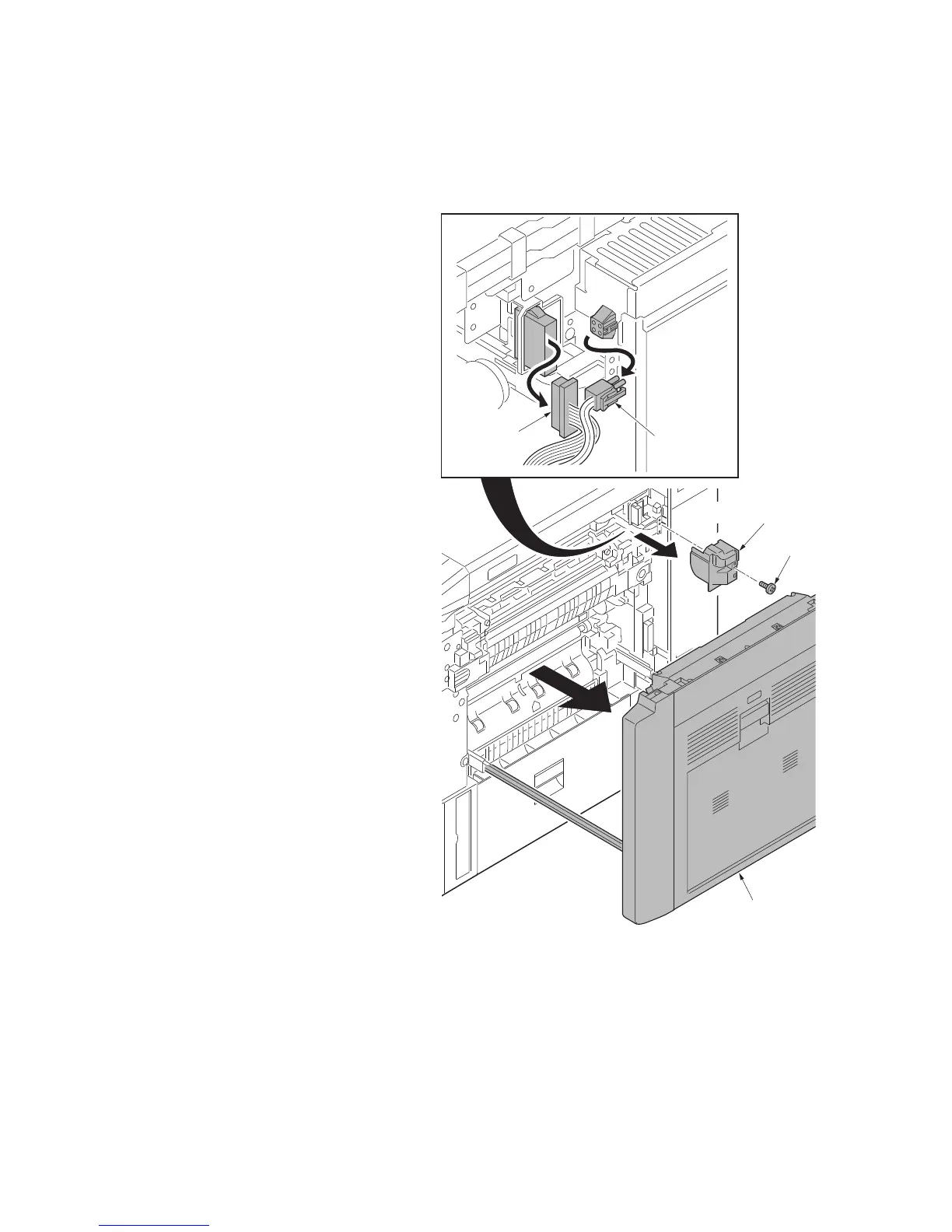

Figure 1-5-61
Fuser wire cover
Screw
Connector
Connector
Paper conveying
unit
