Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1-1
1-5-32
1-5-5 Transfer section

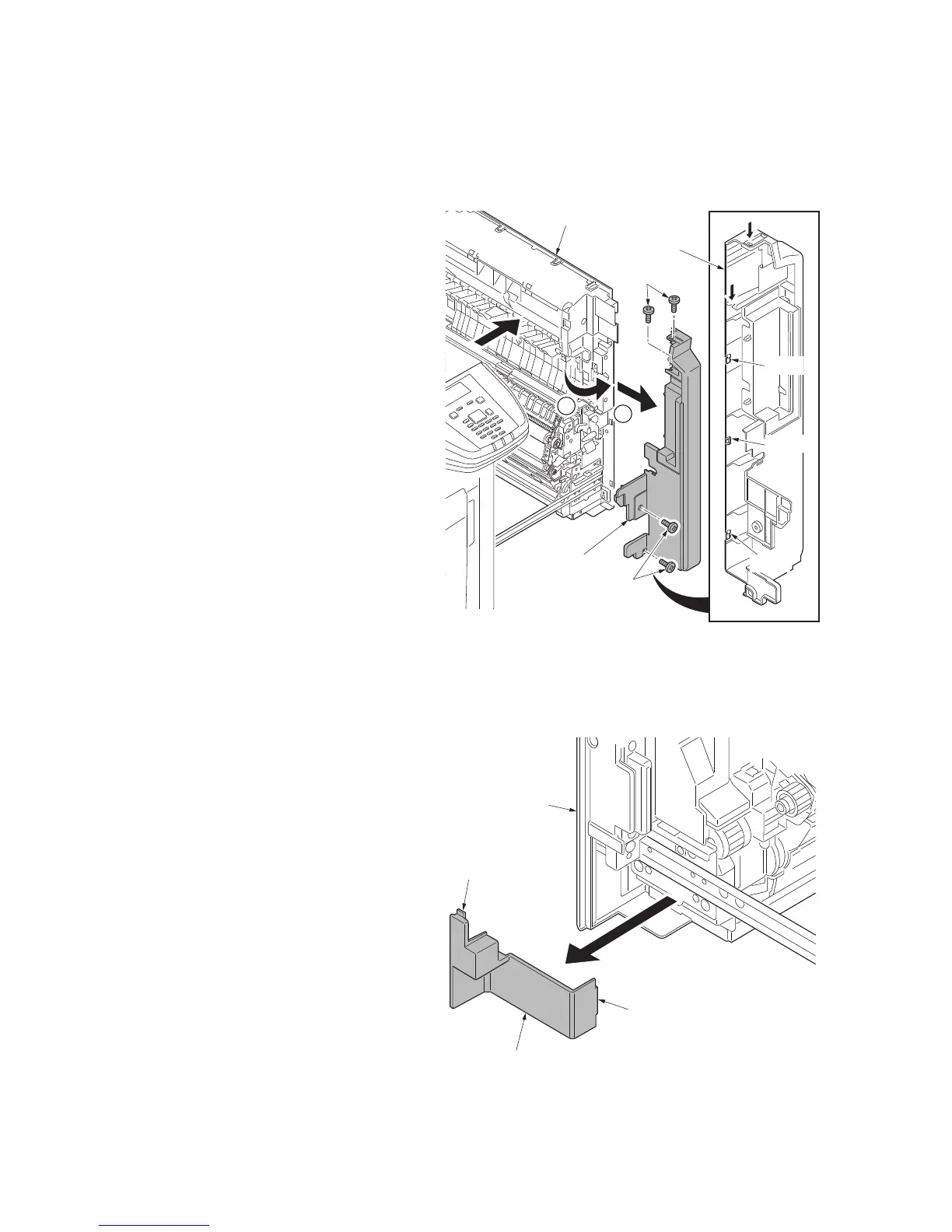

(1) Detaching and refitting the paper conveying unit
Procedure
1. Pull the paper conveying unit out.
2. Remove four screws.
3. Unhook three hooks and then remove
the right front cover.
Figure 1-5-48
4. Unhook two hooks and then remove the
conveying inner cover from the paper
conveying unit.
Figure 1-5-49
1
2
Paper conveying unit
Right front cover
Screws
Hook
Hook
Hook
Right front
cover
Screws
Conveying inner cover
Hook
Paper
conveying unit
Hook
