Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1
1-5-34
(2) Detaching and refitting the transfer belt unit
Procedure
1. Remove the paper conveying unit (see
page 1-5-32).
2. Remove the fuser unit (see page 1-5-
40).
3. Remove the connector.

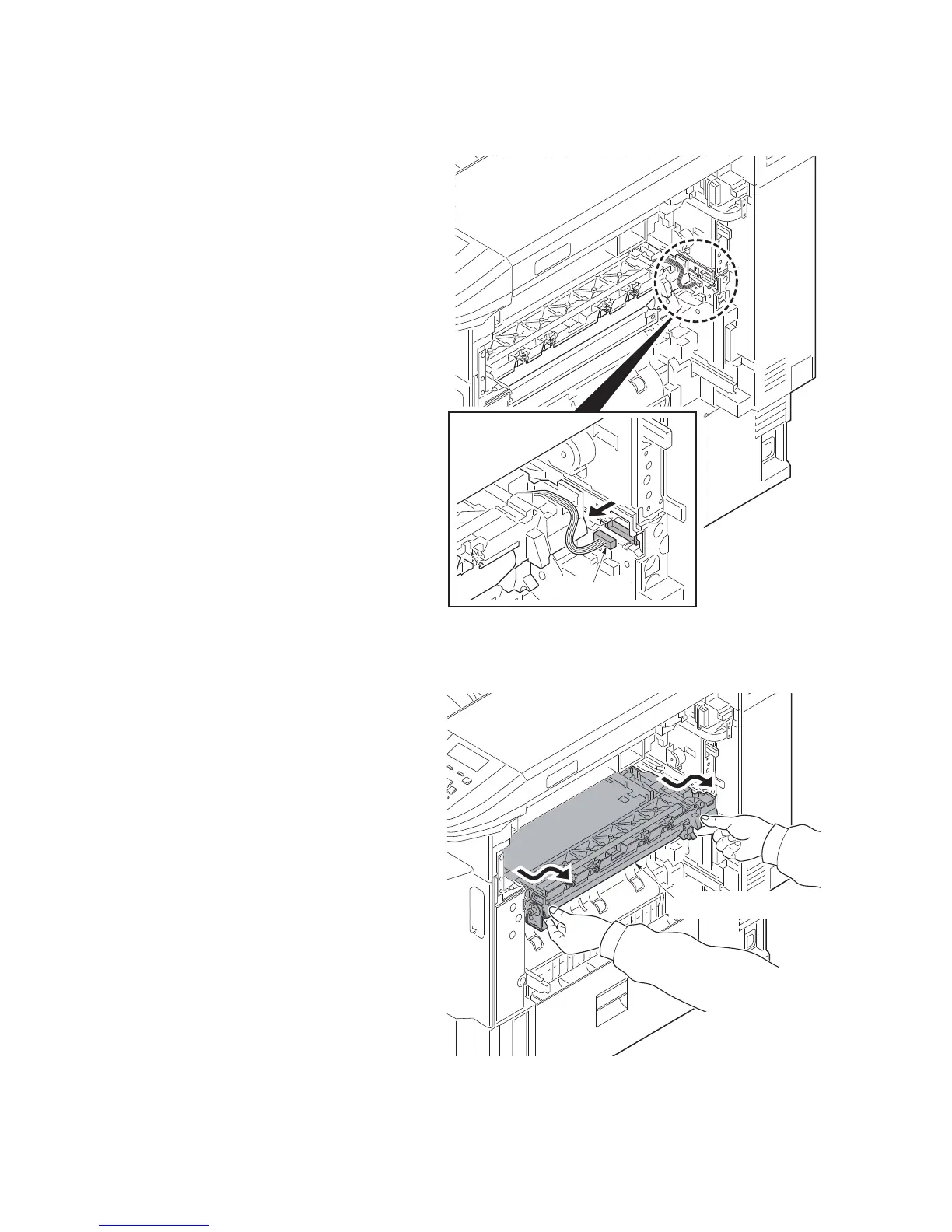

Figure 1-5-51
4. Pull out the transfer belt unit by lifting up
both ends.
Figure 1-5-52
Connector
Transfer belt unit
