2MN/2N1
1-5-35
5. Remove the transfer belt unit.
6. Check or replace the transfer belt unit
and refit all the removed parts.
*: When refitting the new transfer belt
unit, set the projected part aligned with
the rail entrance.
7. When replacing the new transfer belt
unit, proceed as follows:
1) Performs maintenance mode U469
(Transfer belt speed correction) (see
page 1-3-126).
2)Performs maintenance mode U464
(Calibration) (see page 1-3-118).
3)Performs maintenance mode U469
(Auto color registration correction)
(see page 1-3-126).

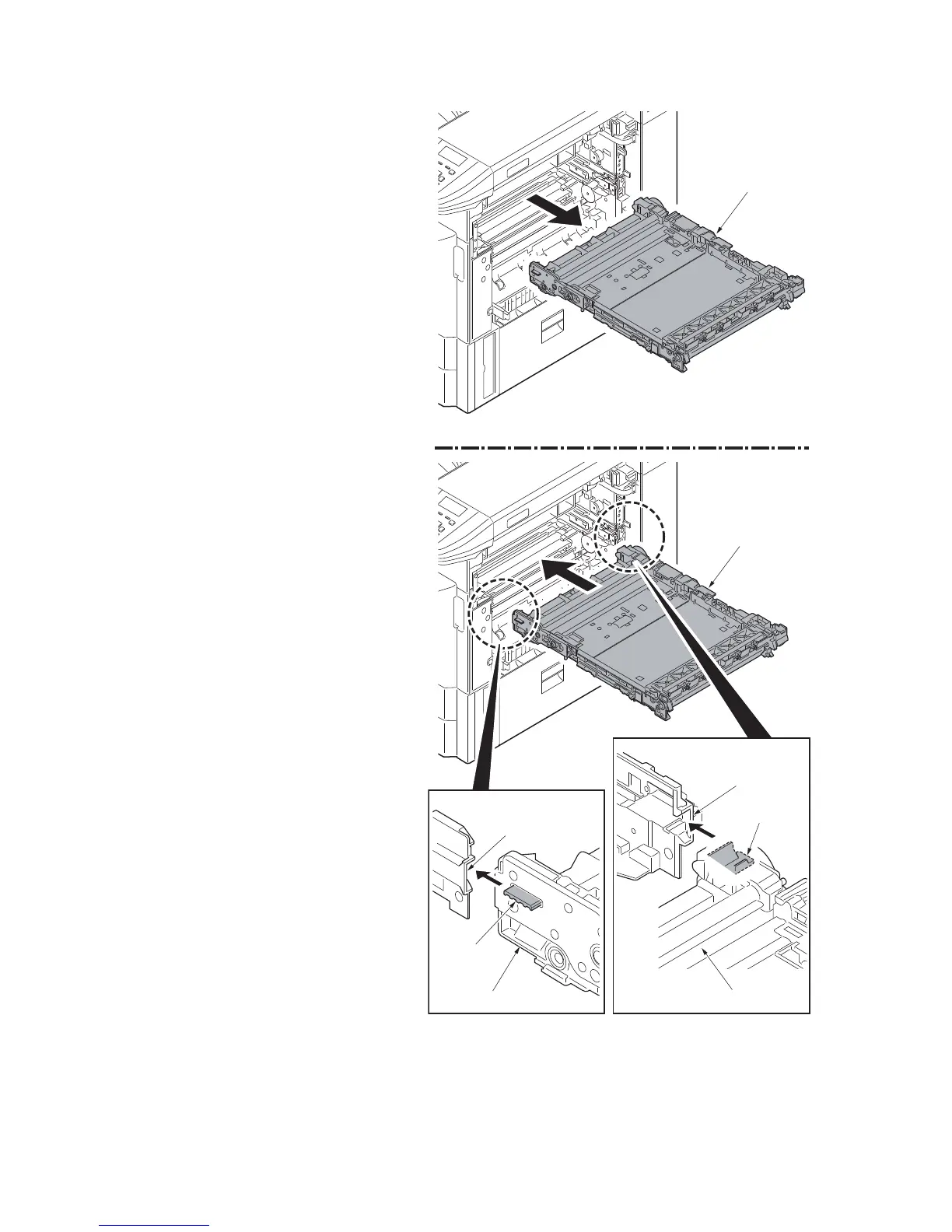

Figure 1-5-53
Transfer belt unit
Transfer belt unit
Transfer belt unit
Transfer belt unit
Projection
part
Projection
part
Rail entrance
Rail entrance
