Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1
1-5-60
17. Remove two connectors.
18. Remove six screws.
19. Unhook the hook of the PWB spacer
and then remove the fuser IH PWB.
20. Check or replace the fuser IH PWB and
refit all the removed parts.

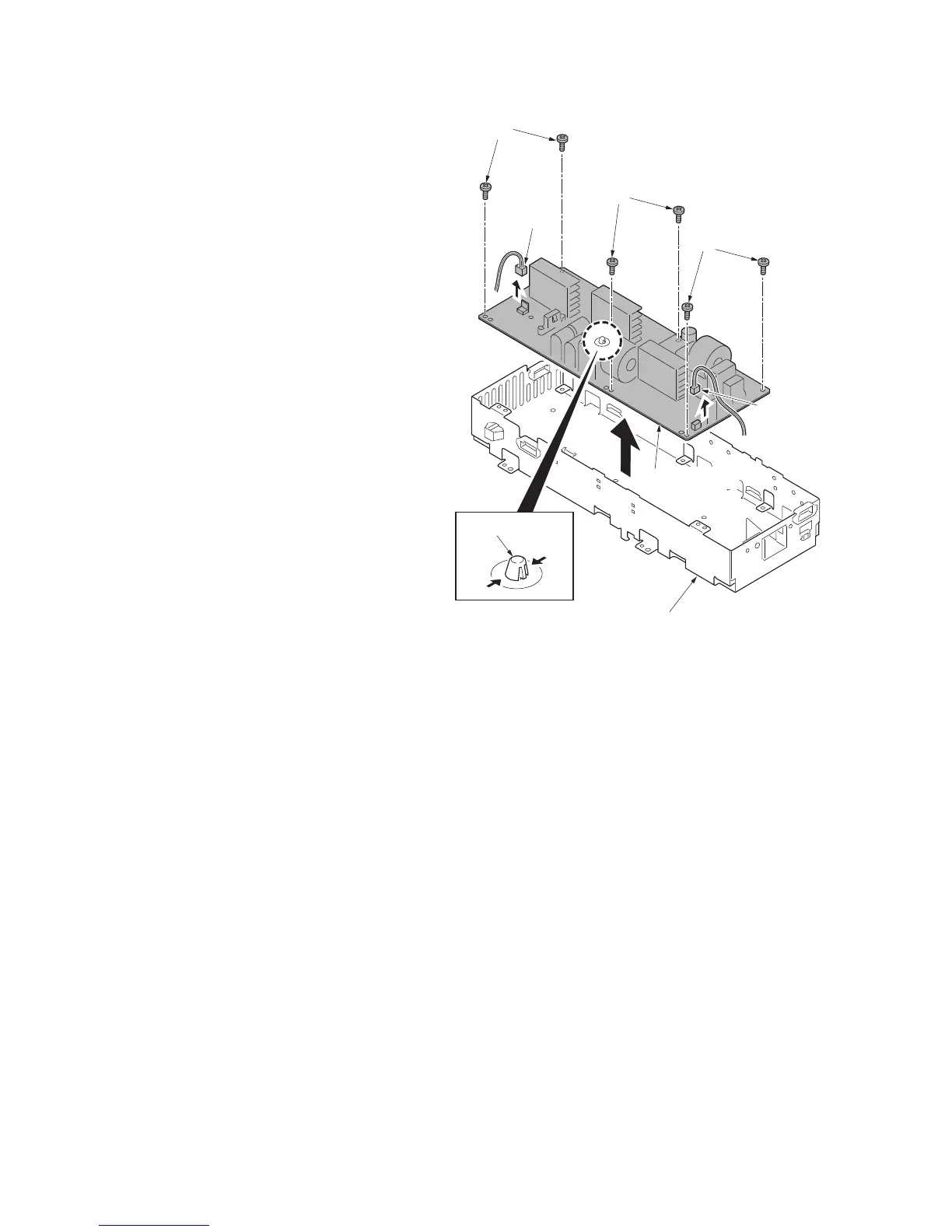

Figure 1-5-92
PWB spacer
Screws
Screws
Screws
Connector
IH box assembly
Connector
Fuser IH PWB
