Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1
1-5-57
5. Remove two screws and then remove
the ISU right cover.
6. Remove the screw and five hooks and
then remove the right upper cover.

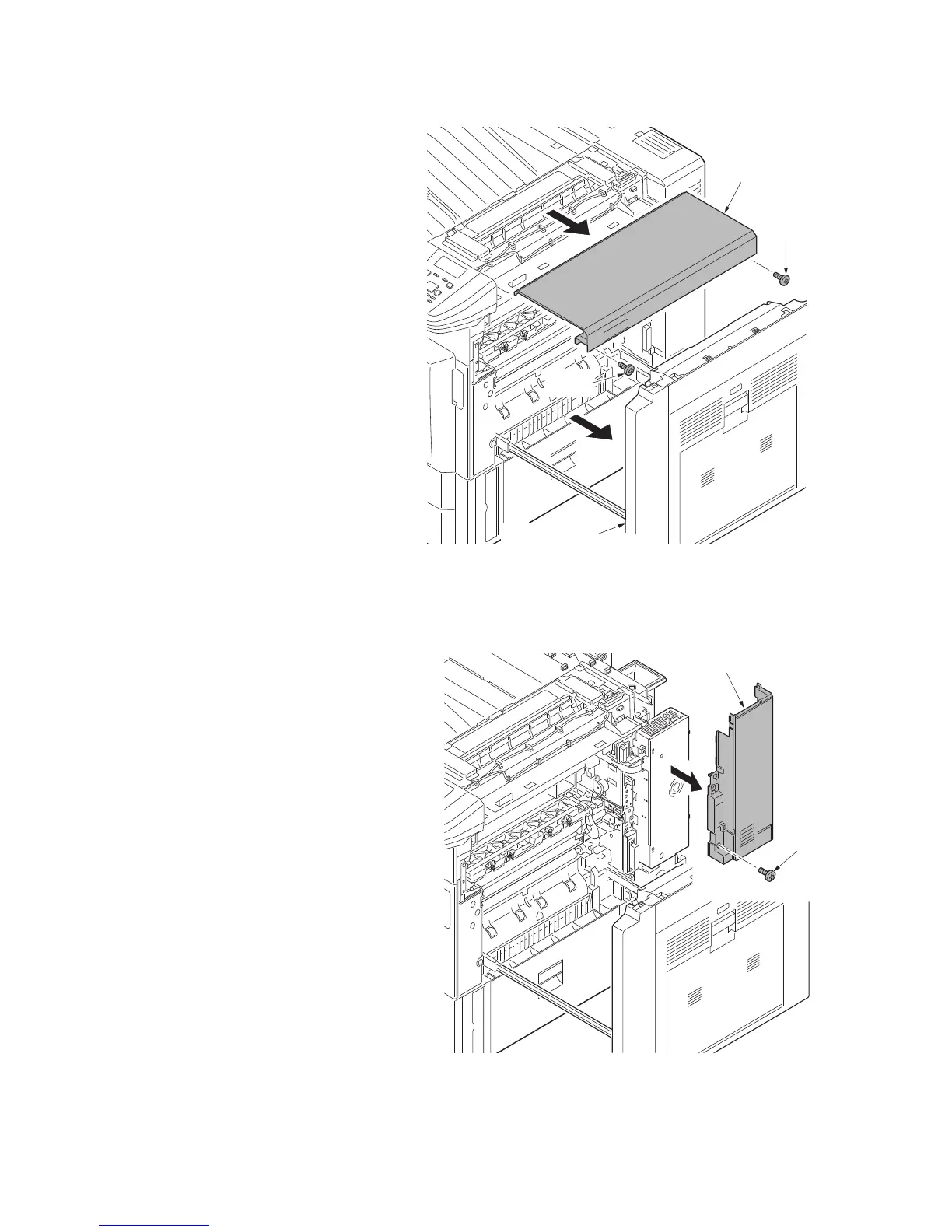

Figure 1-5-86
7. Remove the screw.
8. Unhook two hooks and then remove the
right middle rear cover.
Figure 1-5-87
Right upper cover
Paper conveying unit
Screw
Screw
Right middle rear cover
Screw
