Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1
1-3-101

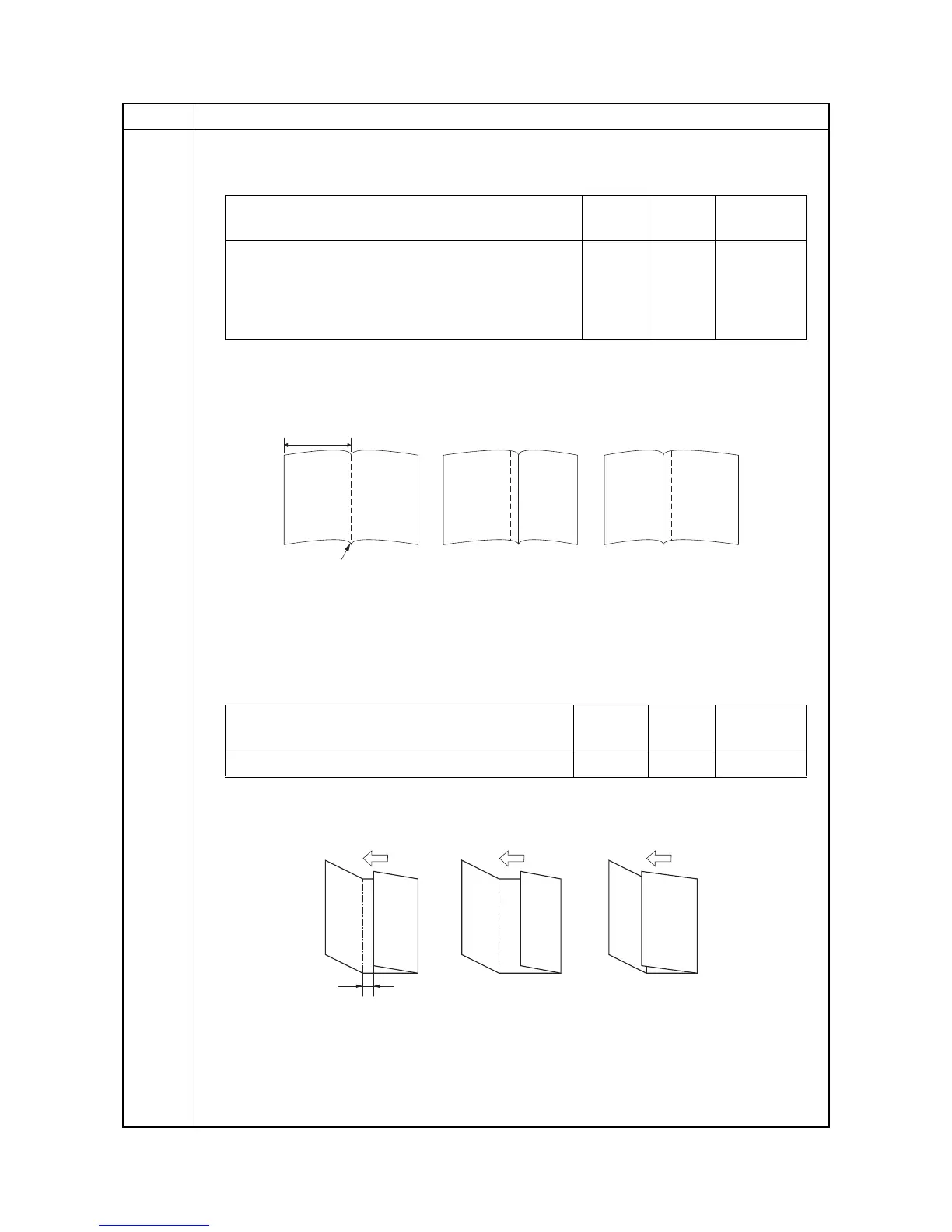

U246 Setting: [Booklet Pos]
1. Select [Booklet Pos1], [Booklet Pos2] or [Booklet Pos3].
2. Change the setting value using the numeric keys.
When the centerfold position too far right (sample 1), increase the preset value. When the
centerfold position too far left (sample 2), decrease the setting value.
Reference value A: A4, Letter: Length of paper × 1/2 ± 2 mm
A3, Ledger, B4: Length of paper × 1/2 ± 3 mm
Figure 1-3-12
3. Press the OK key. The value is set.
Setting: [Three Fold]
1. Select [Three Fold].
2. Change the setting value using the numeric keys.
When the tri-fold position too far right (sample 1), increase the preset value. When the tri-fold
position too far left (sample 2), decrease the setting value.
Reference value A: 7.0 ± 2 mm
Figure 1-3-13
3. Press the OK key. The value is set.
Completion
Press the Back key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
Description Setting
range
Initial
setting
Change in
value per step
Adjustment of center folding position for A4/Letter size -15 to 15 0 0.32 mm
Adjustment of center folding position for B4/Legal size -15 to 15 0 0.32 mm
Adjustment of center folding position for A3/Ledger/
8K size
-15 to 15 0 0.32 mm
Sample 2
Sample 1
A
Center line
Description Setting
range
Initial
setting
Change in
value per step
Adjustment of tri-folding position -15 to 15 0 0.32 mm
A
Sample 1 Sample 2
