Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1
1-5-5

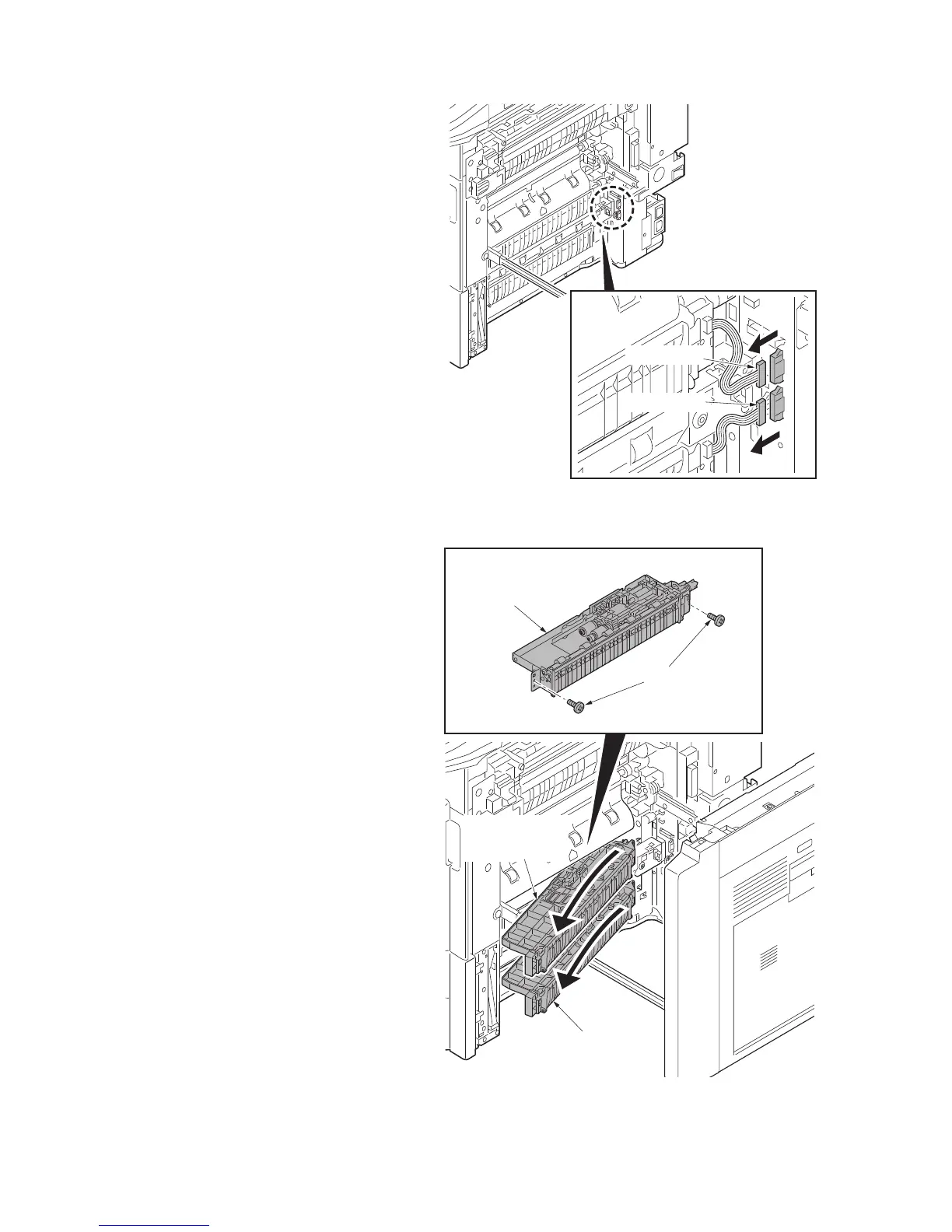

10. Remove two connectors.
Figure 1-5-6
11. Remove two screws each from primary
paper feed unit.
12. Remove the primary paper feed unit.
Figure 1-5-7
Connector
Connector
Primary paper
feed unit
Screws
Primary paper
feed unit
Primary paper
feed unit
