2MN/2N1-1
1-5-11
13.
Remove two screws.
14.
Remove the MP tray paper feed
unit.
*:
T
o reinstall the MP tray feed unit, align it
with the opening in the front left bottom
frame of the feed unit, install the MP
tray feed unit, and raise it so that
it is
correctly seated.

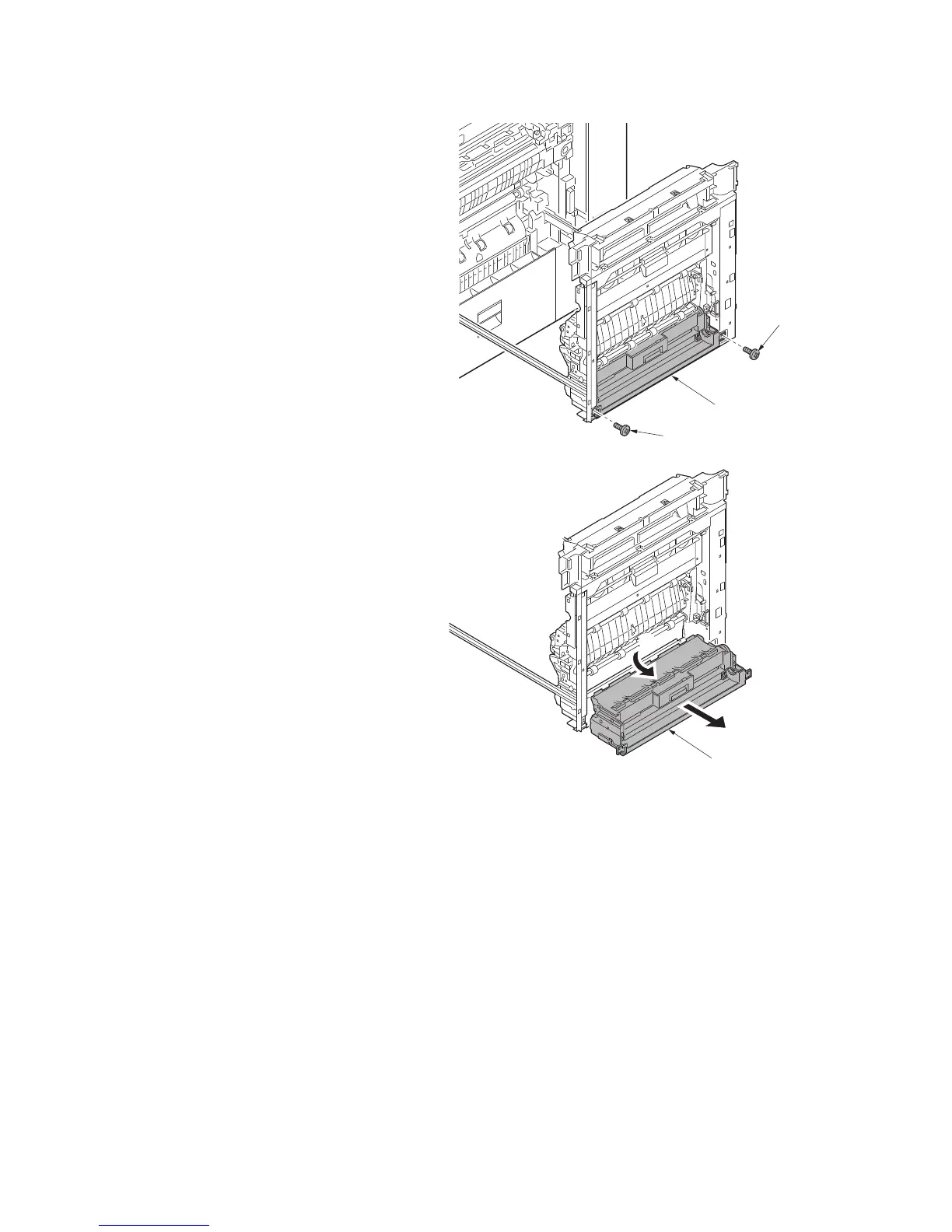

Figure 1-5-16
MP tray
paper feed unit
Screw
Screw
MP tray
paper feed unit
328
330
Table of Contents
Service Manual
1
Revision History
3
Safety Precautions
5
Safety Warnings and Precautions
6
Symbols
6
Installation Precautions
7
Precautions for Maintenance
8
Table of Contents
11
Assembly and Disassembly
12
Specifications
15
Parts Names
18
Machine View and Parts List
18
Option - View and Parts List
20
Operation Panel View and Parts List
21
Machine Cross Section View and Parts List
22
Installation Environment
23
Unpacking and Installation
24
Moving the Machine
25
Unpacking
26
Removing the Tapes
28
Installing the Main Tray and Job Separator Tray
30
Release of Lift Plate Stopper
31
Loading Paper
32
Installing the Toner Containers
35
Unlocking the Developer Waste Exit
36
Installing the Waste Toner Box
37
Installing Optional Devices
38
Connect the Power Cord
38
Adjusting the Image
38
Performing Drum Refresh
38
Setting the Delivery Date
39
Performing LSU Cleaning
39
Performing Calibration
39
Performing Color Registration
39
Output an Own-Status Report
40
Exit Maintenance Mode
40
Print out the User Setting List
40
Shut-Down
41
Setting Initial Print Modes
42
Supplied Parts of Cassette Heater Set
43
Installing the Cassette Heater (Option)
43
Installing the Gigabit Ethernet Board (Option)
48
Installing the IC Card Reader Holder for Internal Wirings
50
Supplied Parts of IC Card Reader Holder
50
Installing the IC Card Reader Holder for External Wirings
60
Enabling IC Card Authentication
64
Supplied Parts of Duct Unit
65
Installing the Duct Unit (Option)
65
Executing a Maintenance Item
69
Maintenance Mode
69
Maintenance Modes Item List
70
Contents of the Maintenance Mode Items
77
Event Log
79
Paper Jam Log
80
Maintenance Log
82
Service Call Log
82
Unknown Toner Log
82
Counter Log
83
Service Status Page
84
Detail of Service Status Page
86
Exiting the Maintenance Mode
90
Setting the Factory Default Data
90
Setting the Machine Number
91
Setting the Maintenance Mode ID
92
Displaying the ROM Version
93
Completion
94
Memory Initializing
94
HDD Formatting
95
Checking the Operation of the Motors
96
Checking Switches and Sensors for Paper Conveying
97
Checking the Operation of the Clutches
98
Checking the Operation of the Solenoids
99
Adjusting the Print Start Timing
100
Adjustment: Leading Edge Registration Adjustment
101
Display Description
102
Checking the Operation of the Fan Motors
104
Adjusting the Deflection in the Paper
105
Setting the Fuser Motor Control
107
Setting the Adjustment of the Motor Speed
109
Setting Fan Mode
115
Outputting a MIP-PG Pattern
116
Adjusting Main High Voltage
117
Setting the Voltage for the Primary Transfer
120
Setting the Voltage for the Secondary Transfer
122
Setting the Transfer Cleaning Voltage
128
Setting Separation Shift Bias
129
Checking the Drum Count
131
Checking the Drum Drive Time
131
Checking the Drum Number
132
Displaying the Drum History
133
Setting the Drum
133
Checking the Transfer Belt Unit Number
134
Displaying the Transfer Belt Unit History
134
Checking/Clearing the Transfer Count
135
Initial Setting for the Developer
136
Setting Transfer High-Voltage Timing
136
Adjusting the Toner Sensor Control Voltage
137
Replenishing Toner Forcibly
138
Checking Toner Motor Operation
139
Setting Toner Near End Detection
139
Displaying the Temperature and Humidity Outside the Machine
140
Displaying Developer Bias
141
Setting for Toner Applying Operation
146
Setting Drum Refresh Mode
147
Checking Sensors for Toner
148
Setting the Toner Replenishment Level
149
Checking the Developer Count
150
Checking the Developer Drive Time
150
Setting the Fuser Control Temperature
151
Checking/Clearing the Fuser Count
153
Checking/Setting the Fuser Power Source
153
Checking the Operation Panel Keys
154
Displaying Fuser Heater Temperature
154
Setting the Paper Size for the Side Deck
155
Setting the Presence or Absence of the Job Separator
155
Operation Panel Lock
156
Setting the USB Host Lock Function
156
Setting Punch Destination
157
Setting Finisher Stack Quantity
158
Checking the Operation of the Finisher
159
Checking the Operation of the Switches of the Finisher
161
Setting the Finisher
164
Setting the Paper Feed Device
170
Checking/Clearing the Maintenance Cycle
172
Checking/Clearing the Maintenance Counter
173
Setting the Destination
174
Switching between Double and Single Counts
175
Selecting the Timing for Print Counting
176
Setting OEM Purchaser Code
176
Setting the Page Count
177
Setting Abnormal Temperature and Humidity Warning
178
Setting Service Status Page
178
Setting the Paper Interval
179
Setting the Cassette Heater Control
180
Setting the Size Conversion Factor
181
Setting the Applied Mode
182
Setting a Gamma Table
183
Setting the Value for Maintenance Due Indication
183
Adjusting the Conveying Sensor
184
Setting the ID Correction Operation
186
Data Reference for ID Correction
189
Setting the Color Registration Adjustment
192
Checking the Color Registration Data
193
Adjusting the Color Registration
194
Checking LSU Cleaning Operation
196
Setting the Color Table
197
Setting Color/Black and White Operation Mode
198
Checking Print Counts by Paper Feed Locations
200
Checking/Clearing the Paper Jam Counts
202
Detail of History of Paper Jams
203
Checking/Clearing the Call for Service Counts
204
Detail of History of Service Counts
205
Checking Counts by Optional Devices
206
Checking the Total Counter Value
207
Clearing the Print Coverage Data
207
Resetting Partial Operation Control
207
Checking Print Counts by Paper Sizes
208
Setting Backup Data Reading/Writing
209
