2MN/2N1
1-5-15

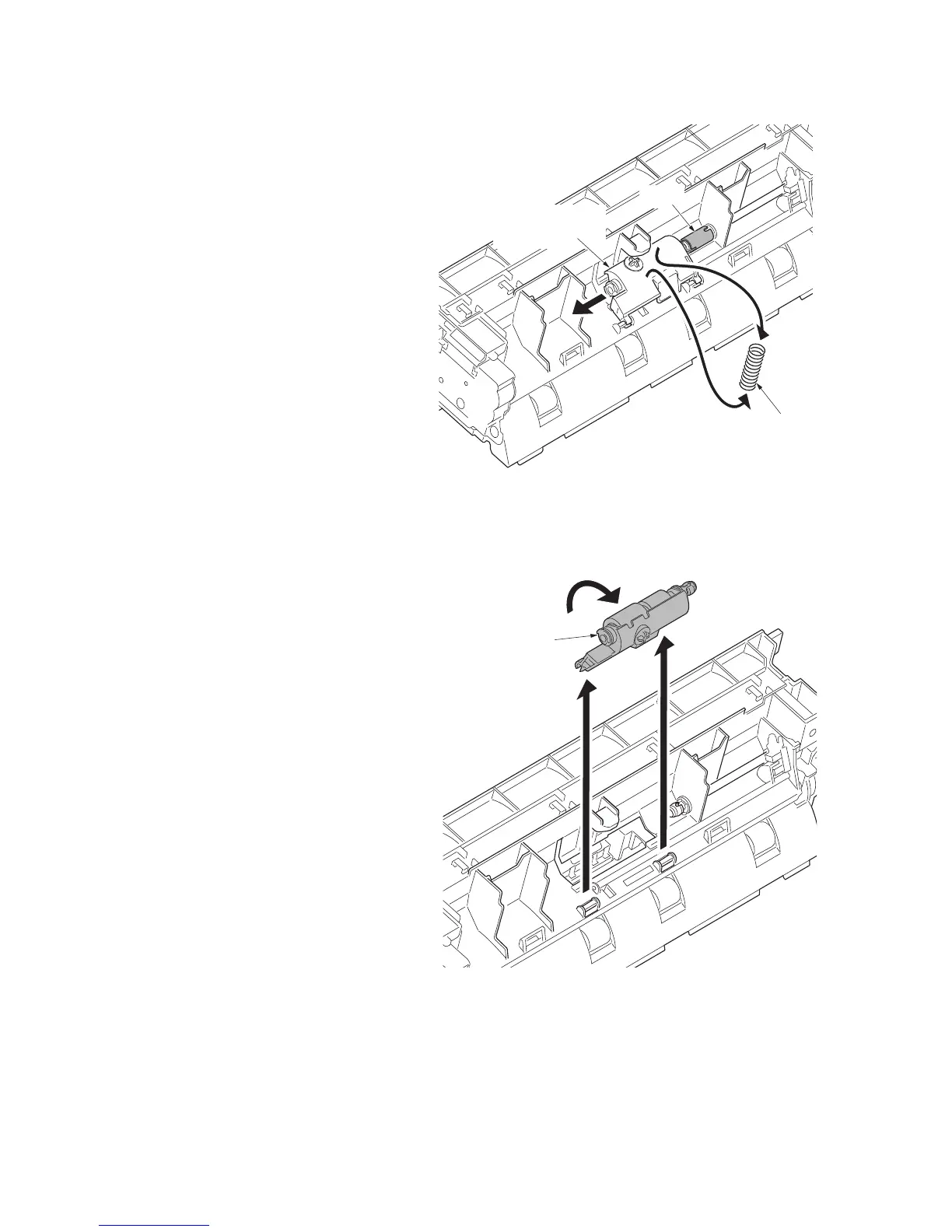

14. Remove the spring.
15. Release the uniting of joint by sliding
the retard holder assembly.
Figure 1-5-23
16. Remove the retard holder assembly by
turning it as shown.
Figure 1-5-24
Spring
Joint
Retard holder
assembly
Retard holder
assembly
