2MN/2N1
1-5-20

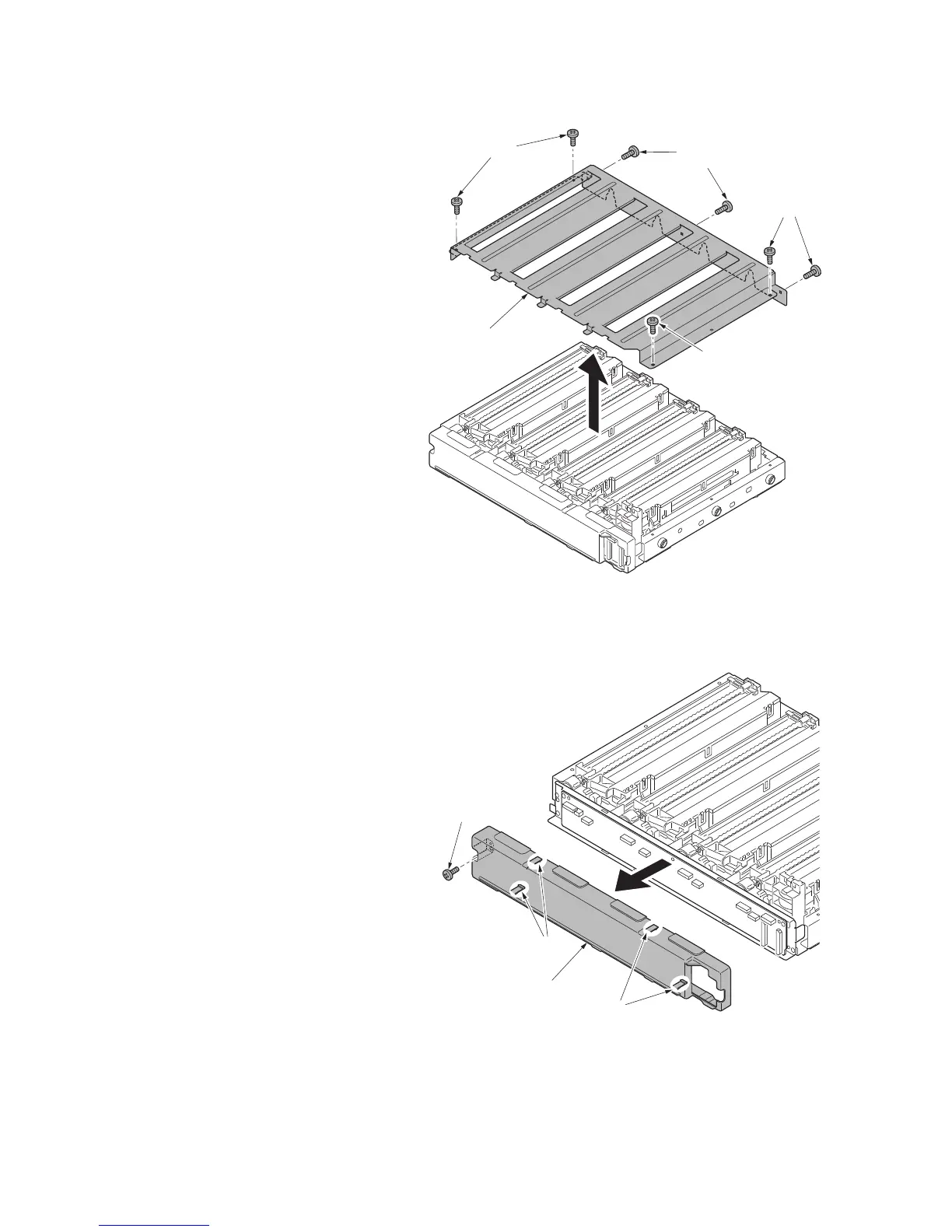

15. Remove seven screws and then
remove the LSU mount lid.
Figure 1-5-31
16. Remove the screw.
17. Unhook four hooks and then remove
the LSU relay PWB cover.
Figure 1-5-32
LSU mount lid
Screws
Screws
Screws
Screw
LSU relay PWB cover
Screw
Hooks
Hooks
