2MN/2N1
1-5-22
21. Remove the LSU retainer pins and the
springs.
22. Remove two screws each and then
remove the LSU front holder.

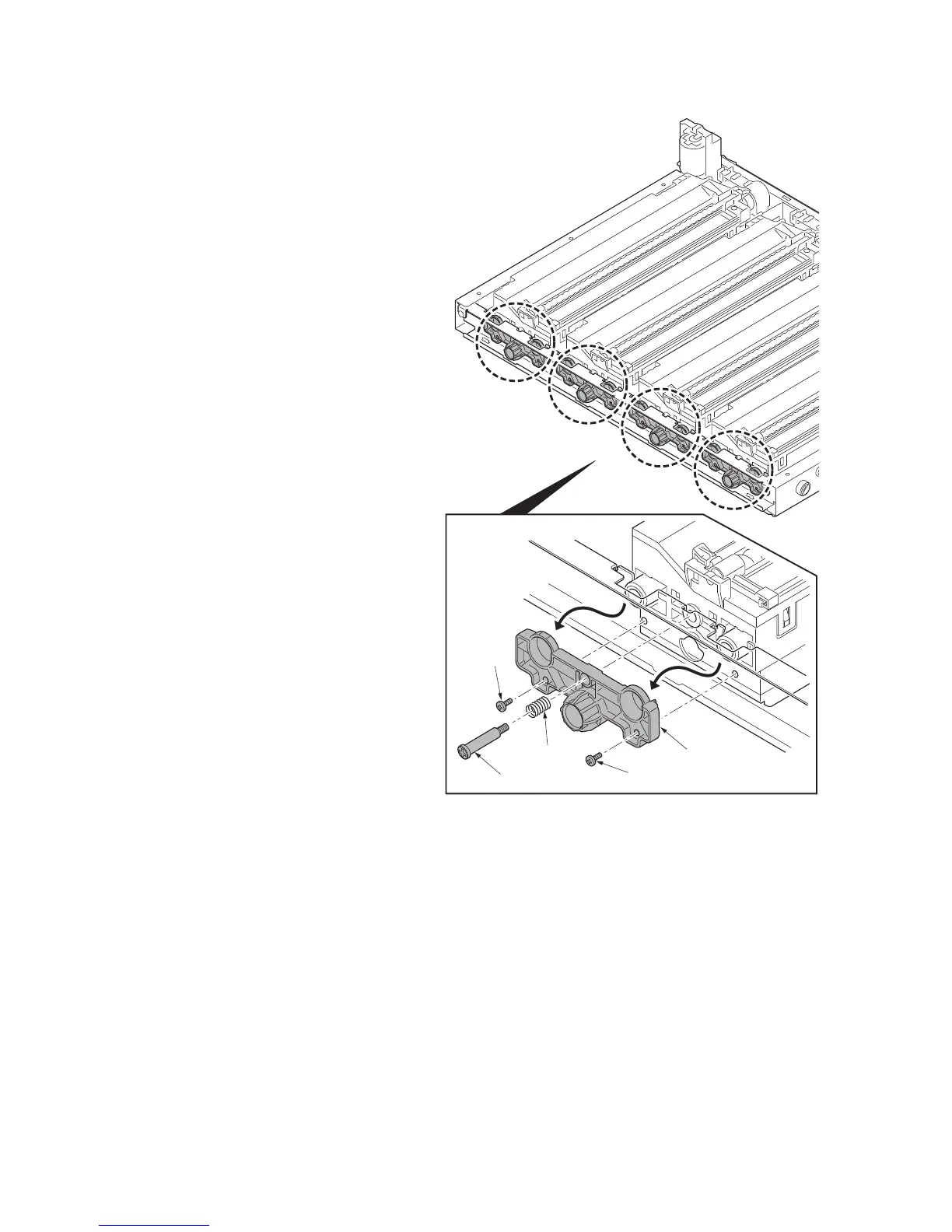

Figure 1-5-34
Screw
Spring
LSU front holder
Screw
LSU retainer pin
