2MN/2N1
1-5-53
13. Release wire saddle.
14. Remove 2-pin relay connector.
15. Remove screw.
16. Remove cooling duct2.
17. Remove eight screws.
18. Remove the power source PWB.
19. Check or replace the power source
PWB and refit all the removed parts.

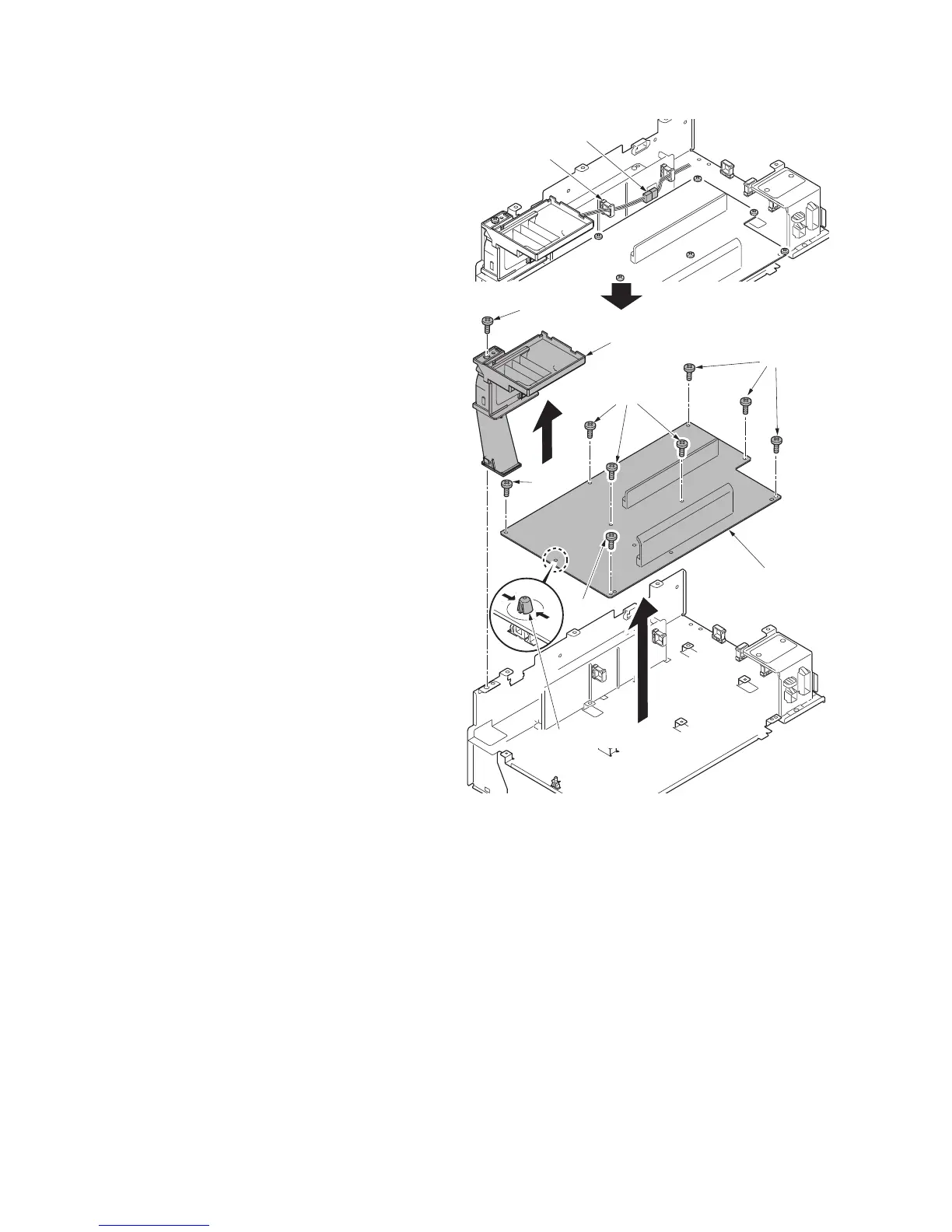

Figure 1-5-79
Screws
Screws
Screw
Cooling duct2
Screw
Screw
Board support
Power source PWB
Wire saddles
2-pin relay connector
