2MN/2N1
1-2-24

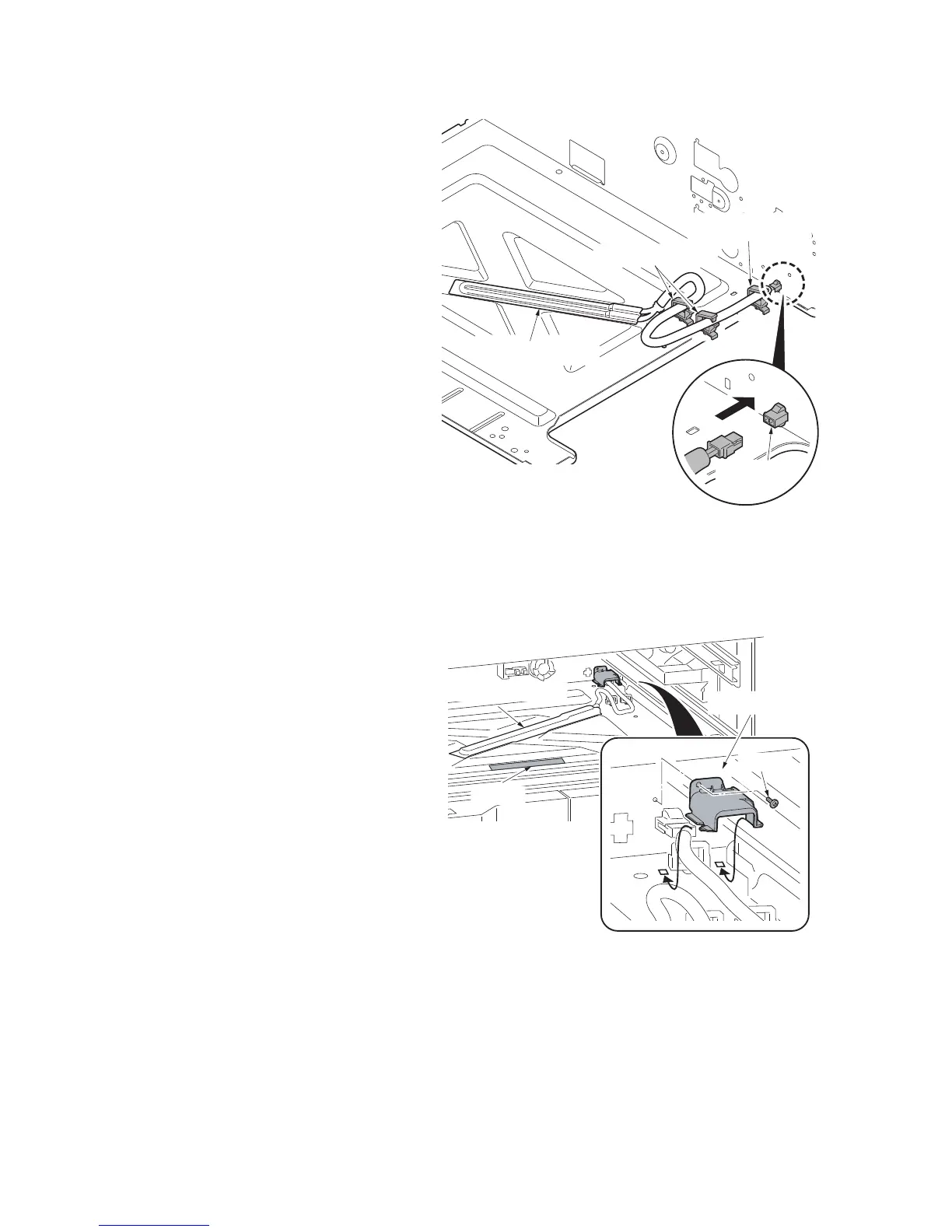

8. Connect the connector of the cassette
heater to the connector in the rear
frame of the machine.
9. Pass the wire of the cassette heater
through three wire saddles and then
fasten the wire.
Figure 1-2-29
10. After installing the cassette heater,
install the connector cover using the M4
× 8 screw.
11. Clean the label with alcohol and then
affix the label.
Figure 1-2-30
Wire saddle
Wire saddle
Cassette heater
Connector
Cassette heater
Label
Connector cover
Screw
To Next Page
