2MN/2N1
1-2-27

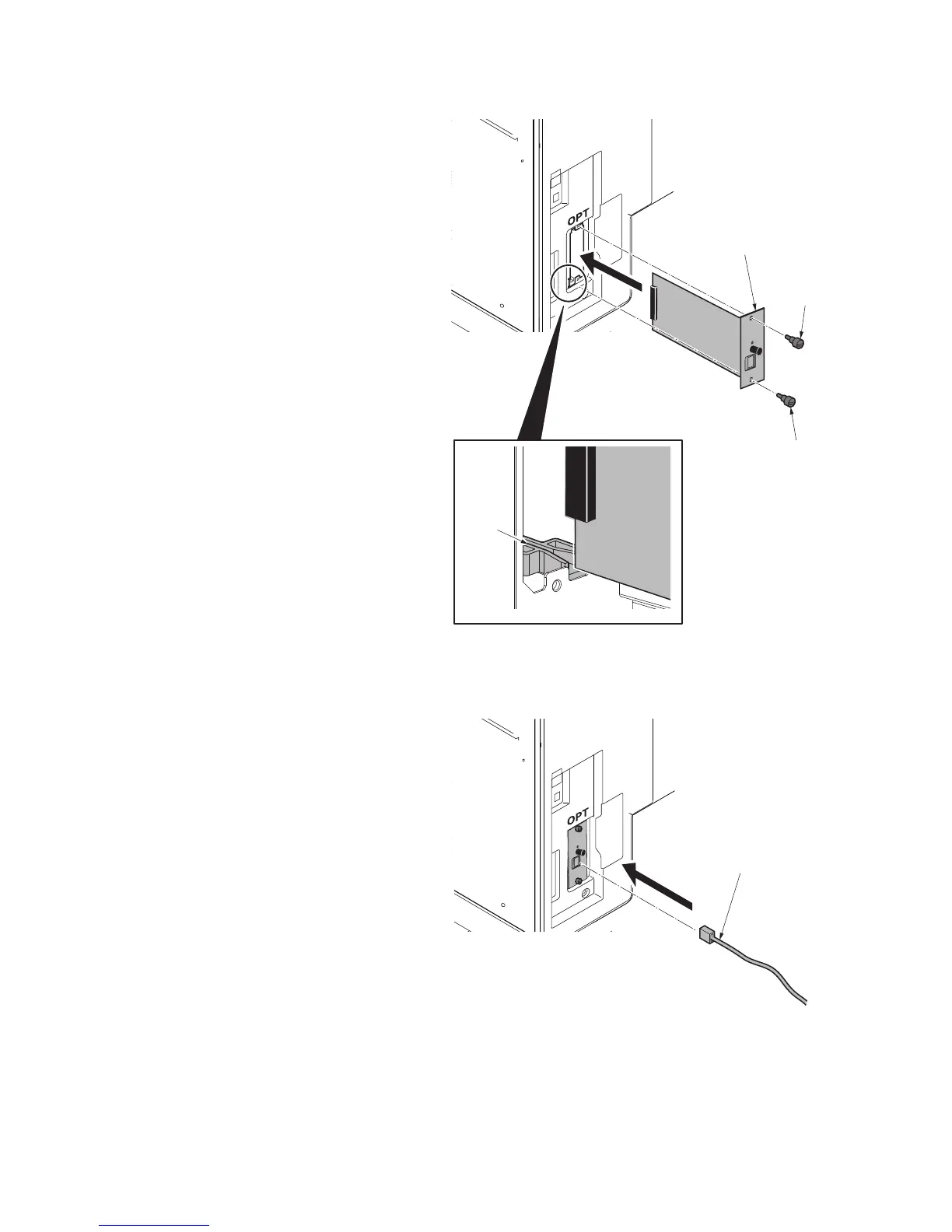

4. Insert the gigabit ethernet board along
the groove in OPT2 and secure the
board with two pins that have been
removed in step 3.
*: Do not directly touch the gigabit ethernet
board terminal.
Hold the top and bottom of the gigabit
ethernet board, or the projection of the
board to insert the gigabit ethernet board.
Figure 1-2-33
5. Plug the modular connector cable into
the line terminal,
6. Close the controller lid.
Figure 1-2-34
Gigabit
ethernet board
Pin
Pin
Groove
Network cable
