Lexmark C792e 5062-210 - 147.XX-Staging Motor Error Service Check

Diagnostic information 2-73
5062

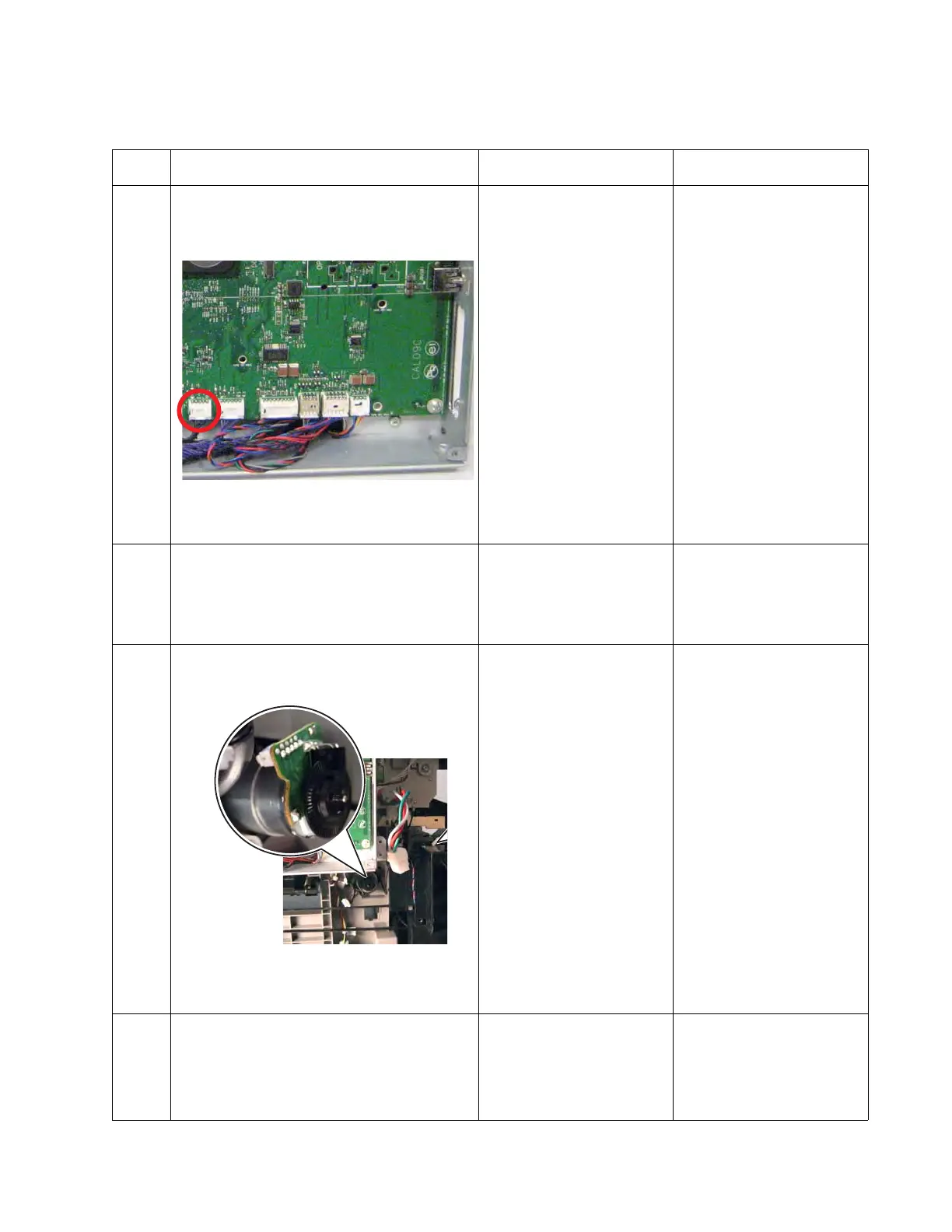

147.xx—Staging motor error service check
Step Questions / actions Yes No
1 Turn the printer off, and open the system
board shield. Check the cable in connector
JSTAG1 (staging motor cable) for proper
connection to the system board.
Is the cable properly connected?
Go to step 2. Reseat the cable.
2
Check the cable for damage.
Is the cable damaged?
Replace the staging motor
cable. See “Staging paper
path reference edge
assembly removal” on
page 4-136 to access the
cable.
Go to step 3.
3
Remove the LVPS. See “Low-voltage power
supply (LVPS) removal” on page 4-82.
Check the cable connection to the motor.
Is the cable connected correctly to the
staging motor?
Go to step 4. Reseat the cable.
4
Replace the staging paper path reference
edge assembly. See “Staging paper path
reference edge assembly removal” on
page 4-136.
Dose the error reoccur?
Replace the system board.
See “System board
removal” on page 4-142.
Problem solved.
