Repair information 4-255
5062
Finisher or offset stacker paddle drive gear removal
1. Remove the option from the printer.
2. Remove the paddle drive motor. See “Finisher or stacker paddle drive motor assembly removal” on
page 4-255.

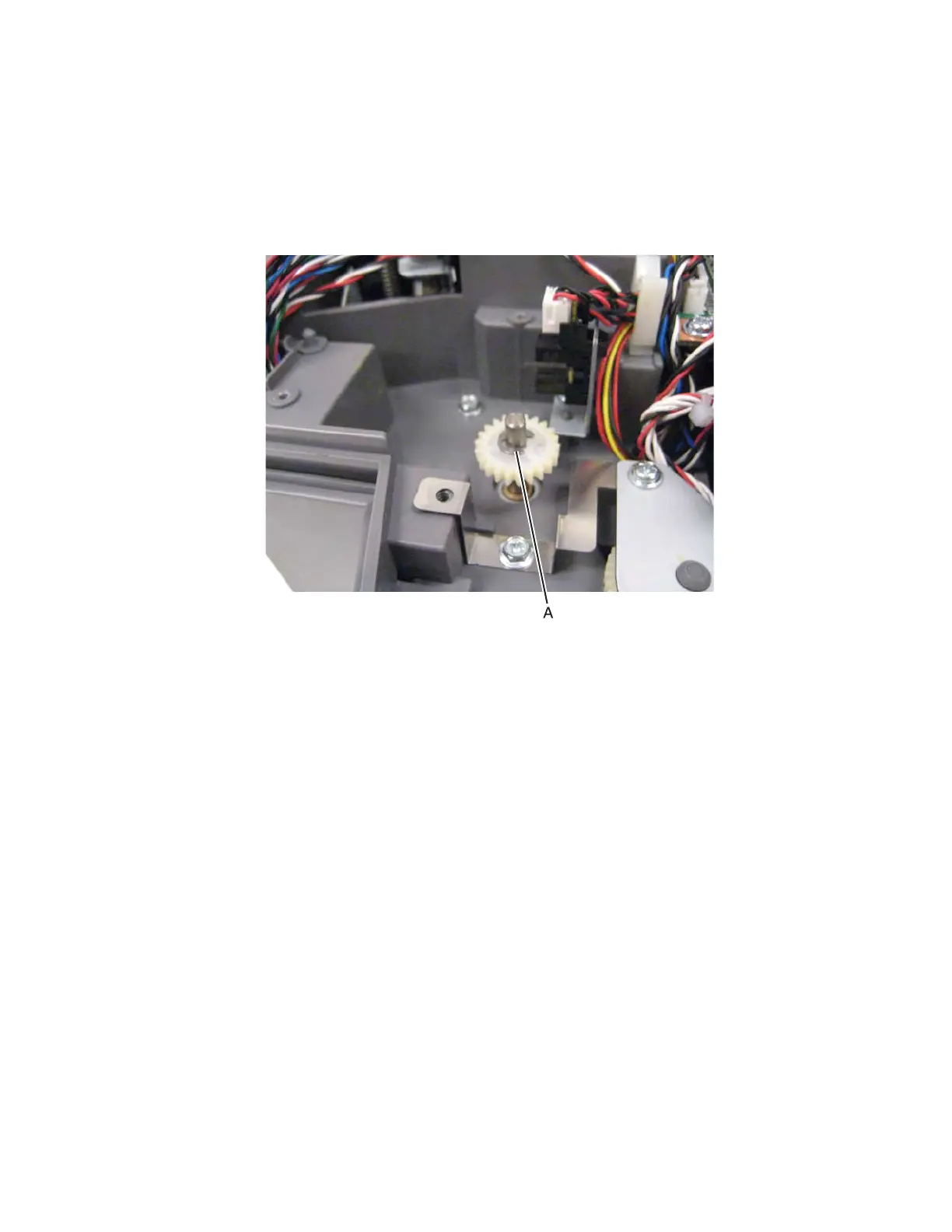

3. Remove the E-clip (A), and remove the gear.
Finisher or stacker paddle drive motor assembly removal
See “Finisher assembly (continued)” on page 7-25 for the part number.
1. Remove the option from the printer.
2. Remove the front cover. See “Finisher or stacker front cover removal” on page 4-248.
3. Disconnect the paddle motor cable from the controller card.
4. Remove the cable from the clip.
To Next Page
