Repair information 4-281

5062

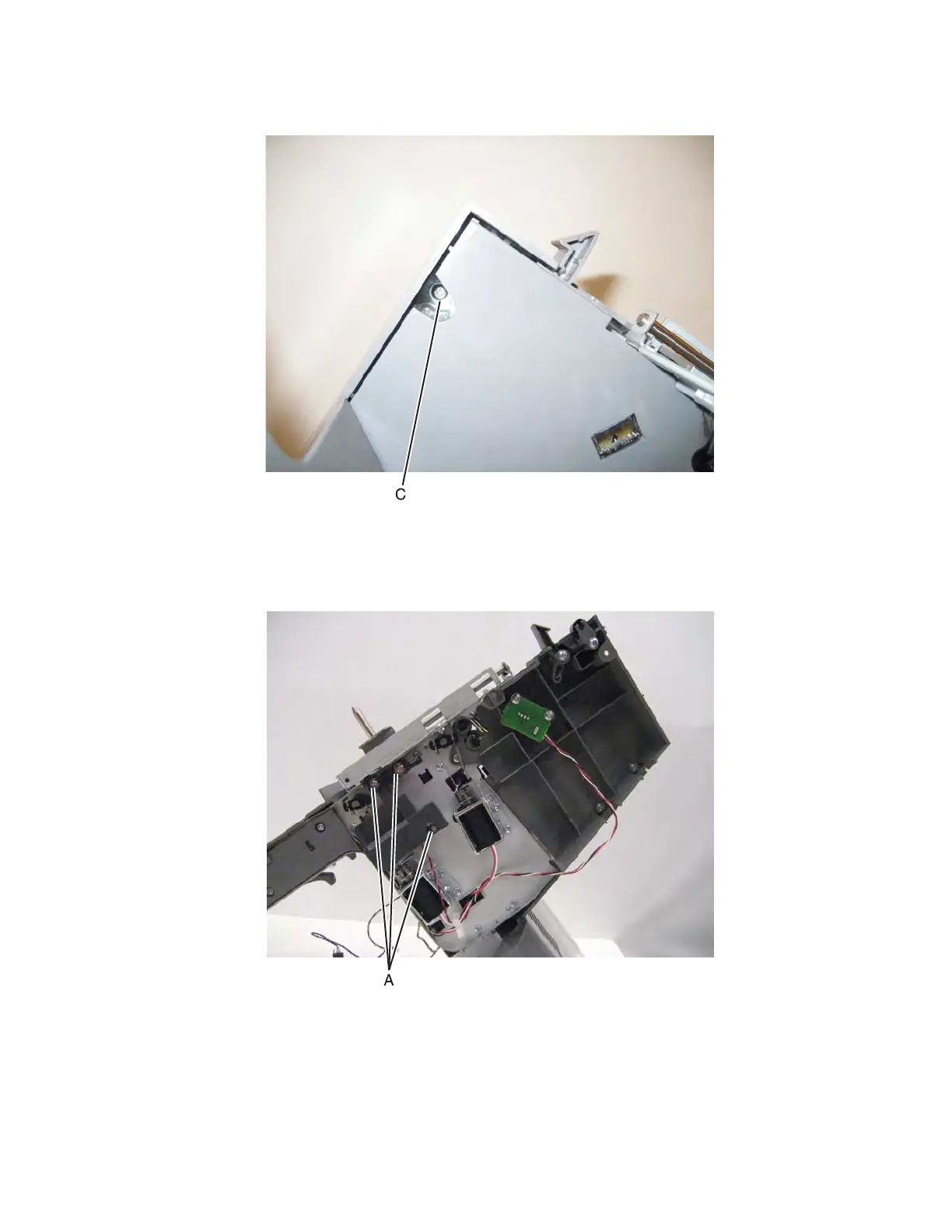

4. Remove the screw (C) inside the output bin, and remove the cover.

HTU locking lever removal

1. Remove the front standard bin cover. See “HTU front standard bin cover removal” on page 4-280.

2. Remove the three E-Clips (A) holding the locking lever.
