Lexmark C792e 5062-210 - 2000-Sheet High-Capacity Feeder Lift Drive Motor Assembly Removal

To Next Page

To Previous Page

Repair information 4-201

5062

2000-sheet high-capacity feeder lift drive motor assembly removal

See“Optional 2000-sheet high-capacity feeder” on page 7-21 for the part number.

1. Remove the media tray assembly. See “2000-sheet high-capacity feeder media tray assembly

removal” on page 4-204.

2. Remove the rear cover. See “2000-sheet high-capacity feeder rear cover removal” on page 4-218.

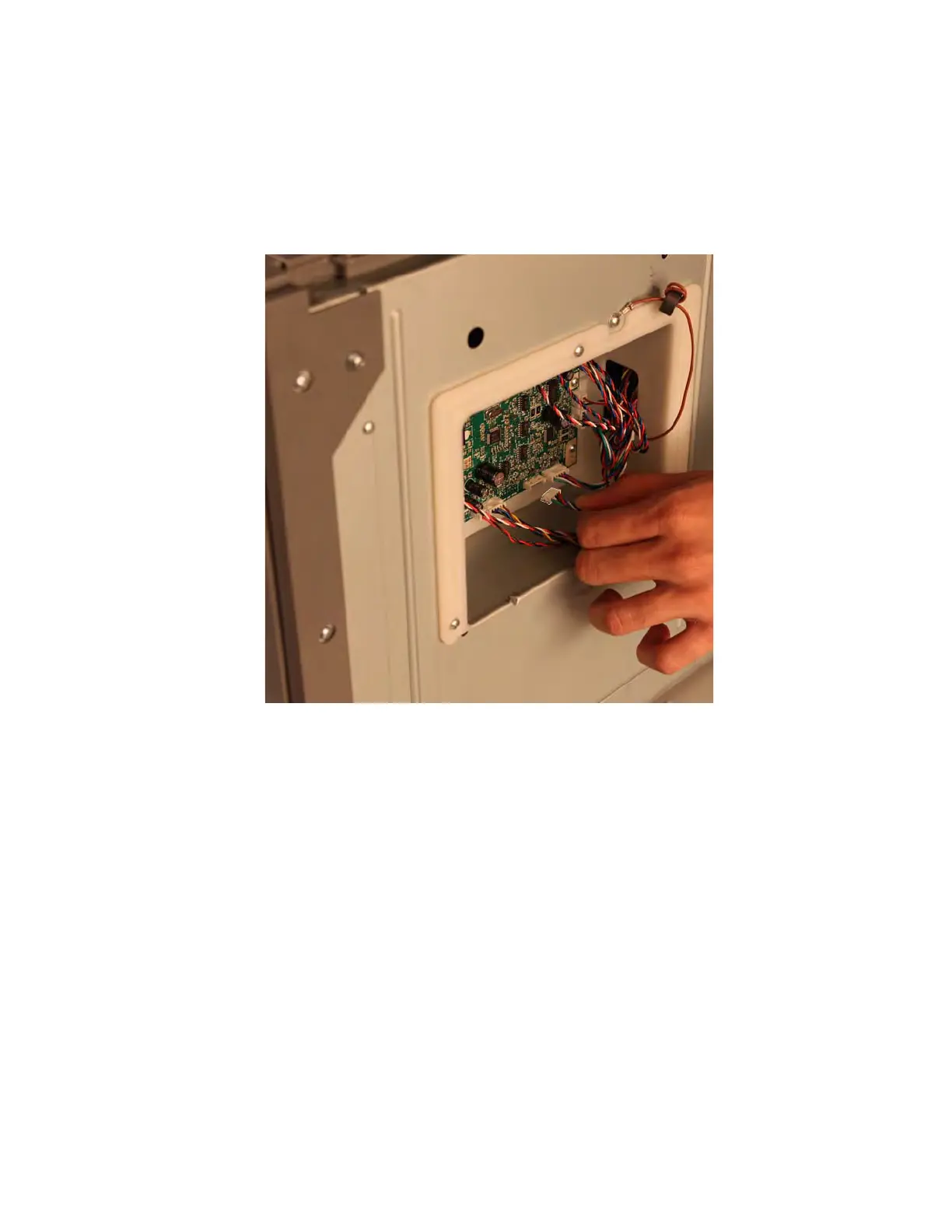

3. Disconnect the lift drive motor connector from the controller card assembly.

4. Release the lift drive motor cable from the cable guide (A).
