Lexmark C792e 5062-210 - Duplex Assembly Removal

To Next Page

To Previous Page

Repair information 4-51

5062

Duplex assembly removal

See “Left and rear covers” on page 7-5 for the part number.

1. Remove the left access door assembly. See “Left access door assembly removal” on page 4-4.

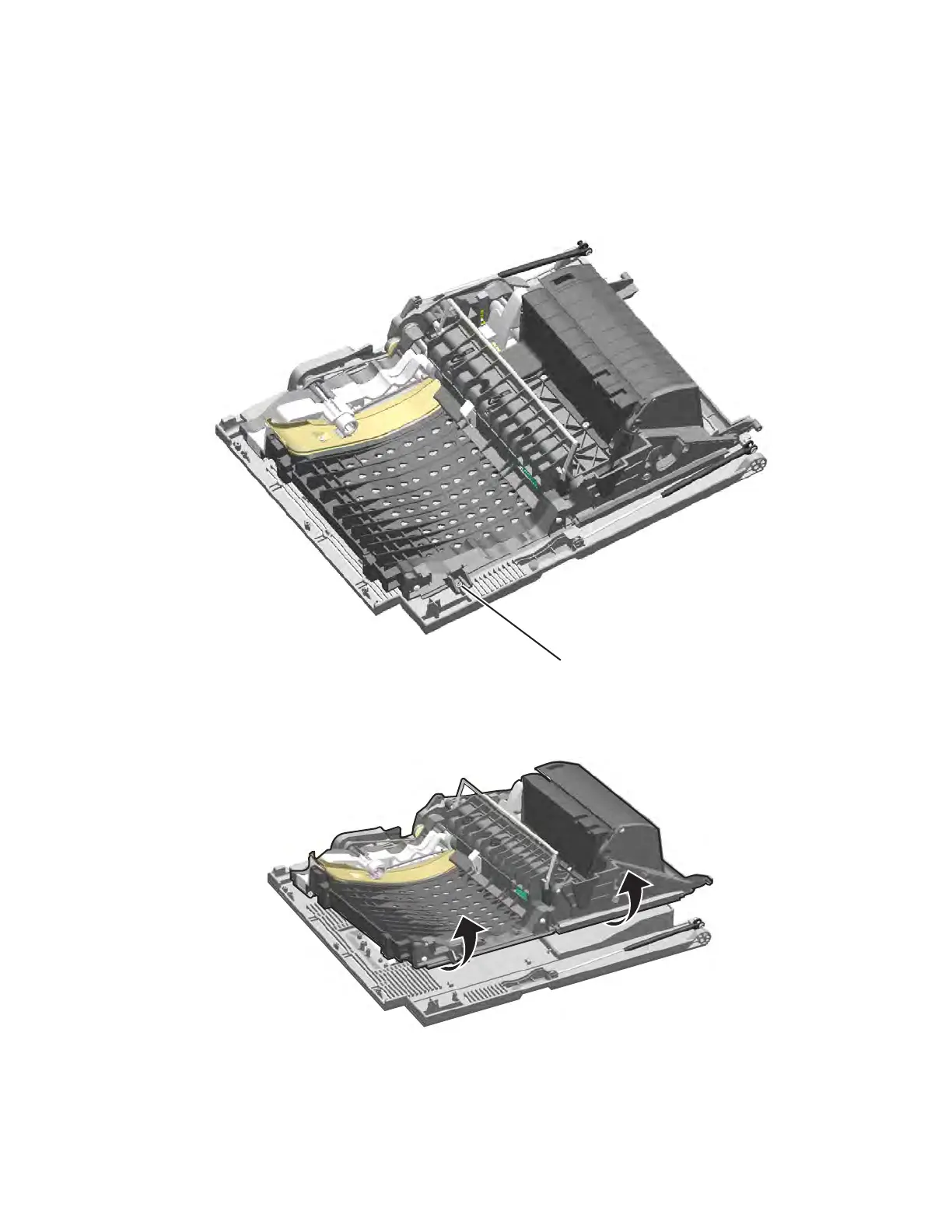

2. Remove the screw (A) that secures the duplex assembly to the left access cover.

3. Lift the duplex assembly from the left access door.

A (88A0425)
