Host USB cable removal
See “Front host USB cable” on page 7-36 for the part number.
1. Remove the operator panel assembly. See “Operator panel (OP) assembly removal” on page 4-105.

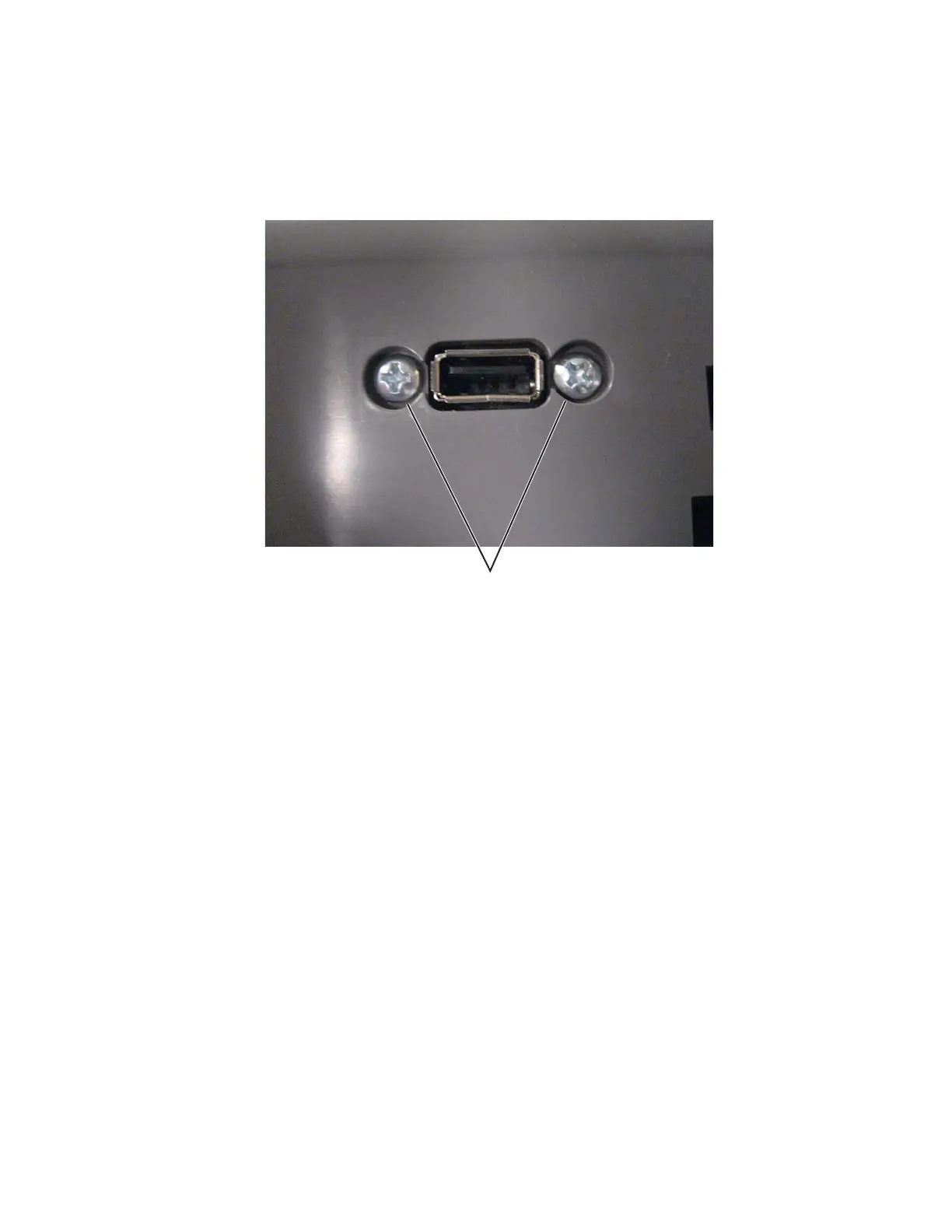

2. Remove two screws (A) from the USB cable.
3. Disconnect the cable from the UICC card to remove it.
Housing interlock assembly removal
See “Front” on page 7-7 for the part number.
1. Remove the LVPS. See “Low-voltage power supply (LVPS) removal” on page 4-82.
2. Remove the lower frame cable cover. See “Lower frame cable cover removal” on page 4-15.
3. Remove the waste toner left cover. See “Waste toner left cover removal” on page 4-32.
4. Remove one screw (A), and remove the waste toner sensor cover.
