4-102 Service Manual

5062

• Verify the rolls turn freely.

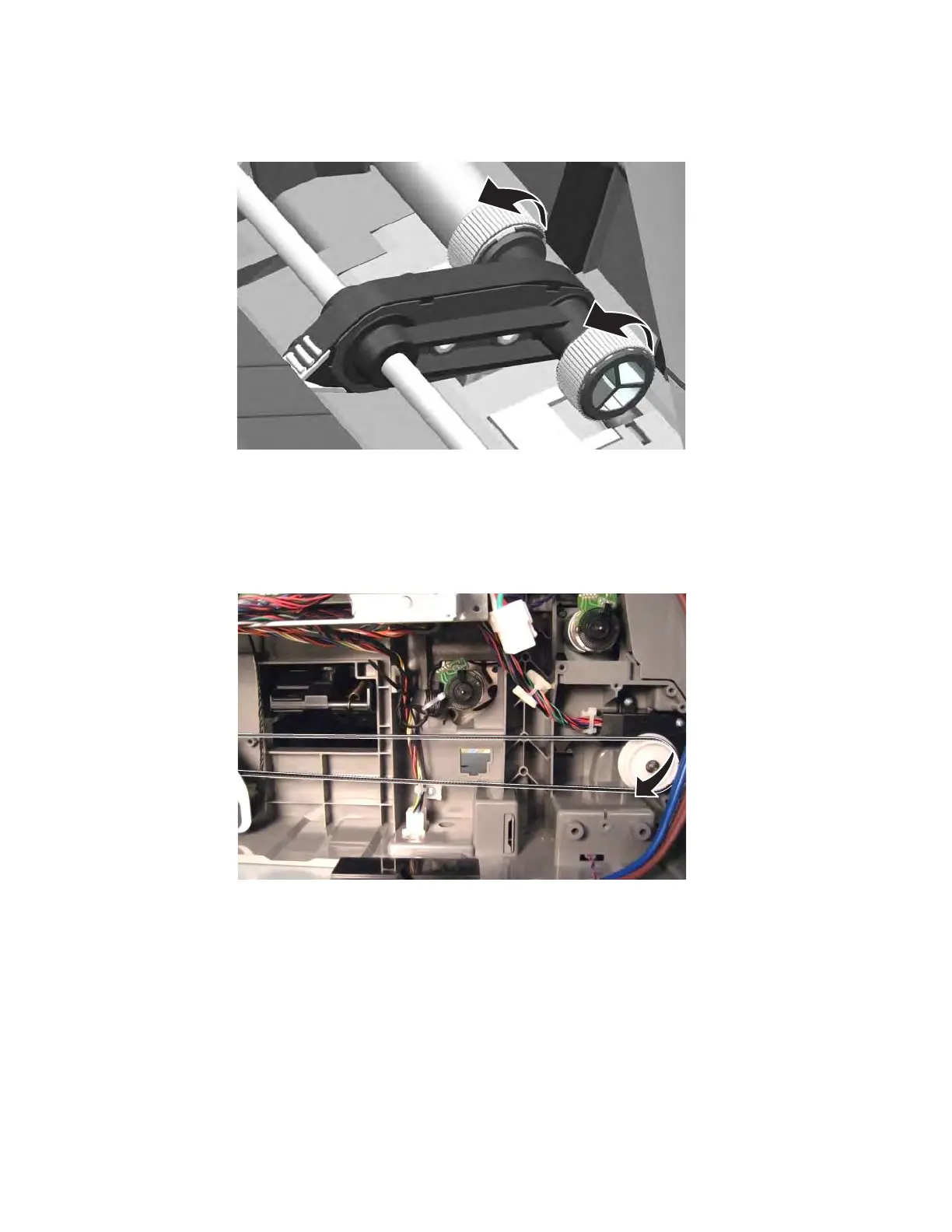

MPF drive assembly removal

See “Rear” on page 7-15 for the part number.

1. Remove the LVPS exit duct. See “LVPS exit duct removal” on page 4-85.

2. Slide the belt off the MPF redrive pulley.
