Lexmark C792e 5062-210 - HTU Transport Motor Removal; HTU Upper Exit Shaft Removal

4-314 Service Manual
5062

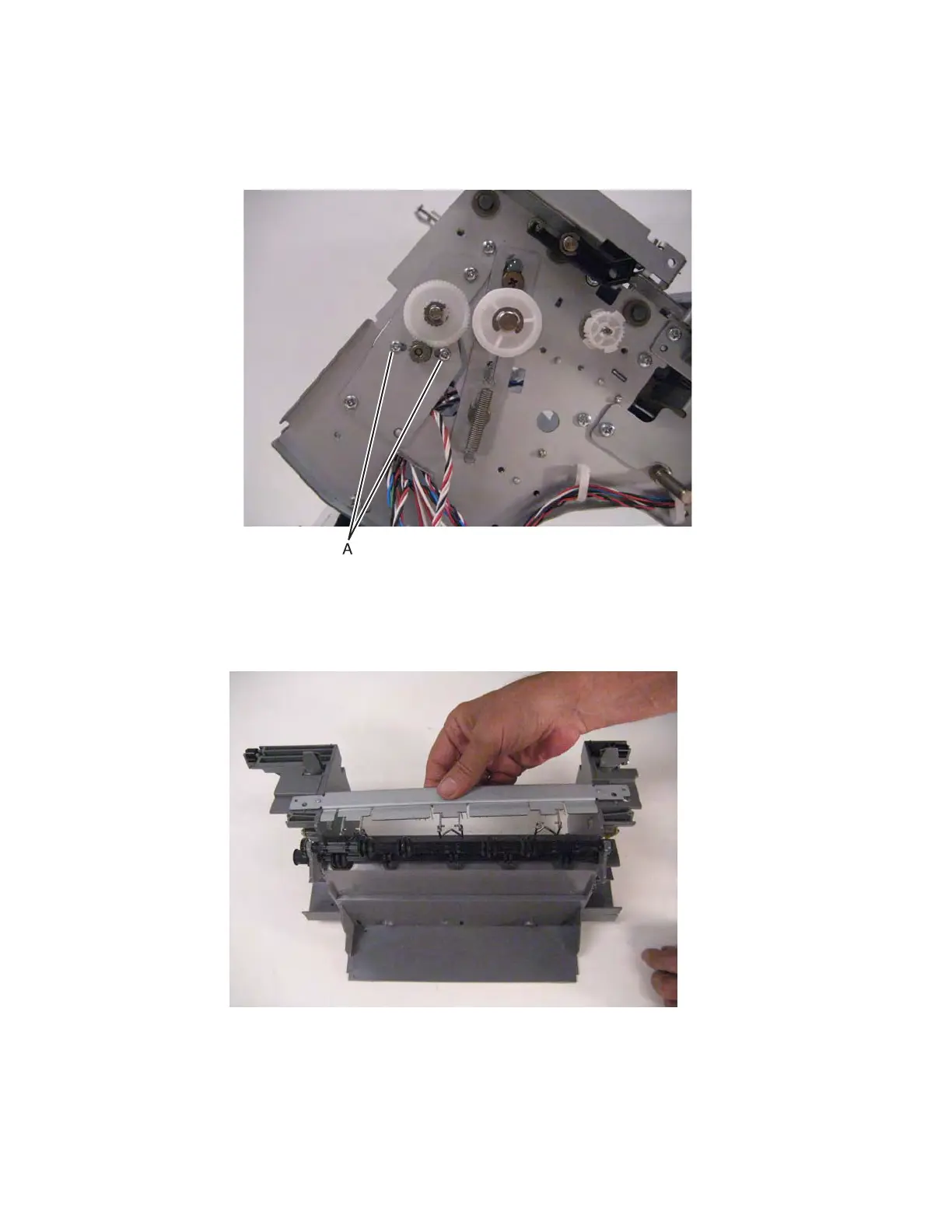

HTU transport motor removal
1. Remove the right inner cover. See “HTU right inner cover removal” on page 4-300.
2. Remove the two screws (A), and then remove the transport motor.
HTU upper exit shaft removal
1. Remove the right inner cover. See “HTU right inner cover removal” on page 4-300.
2. Remove the metal beam slide.
