Repair information 4-27

5062

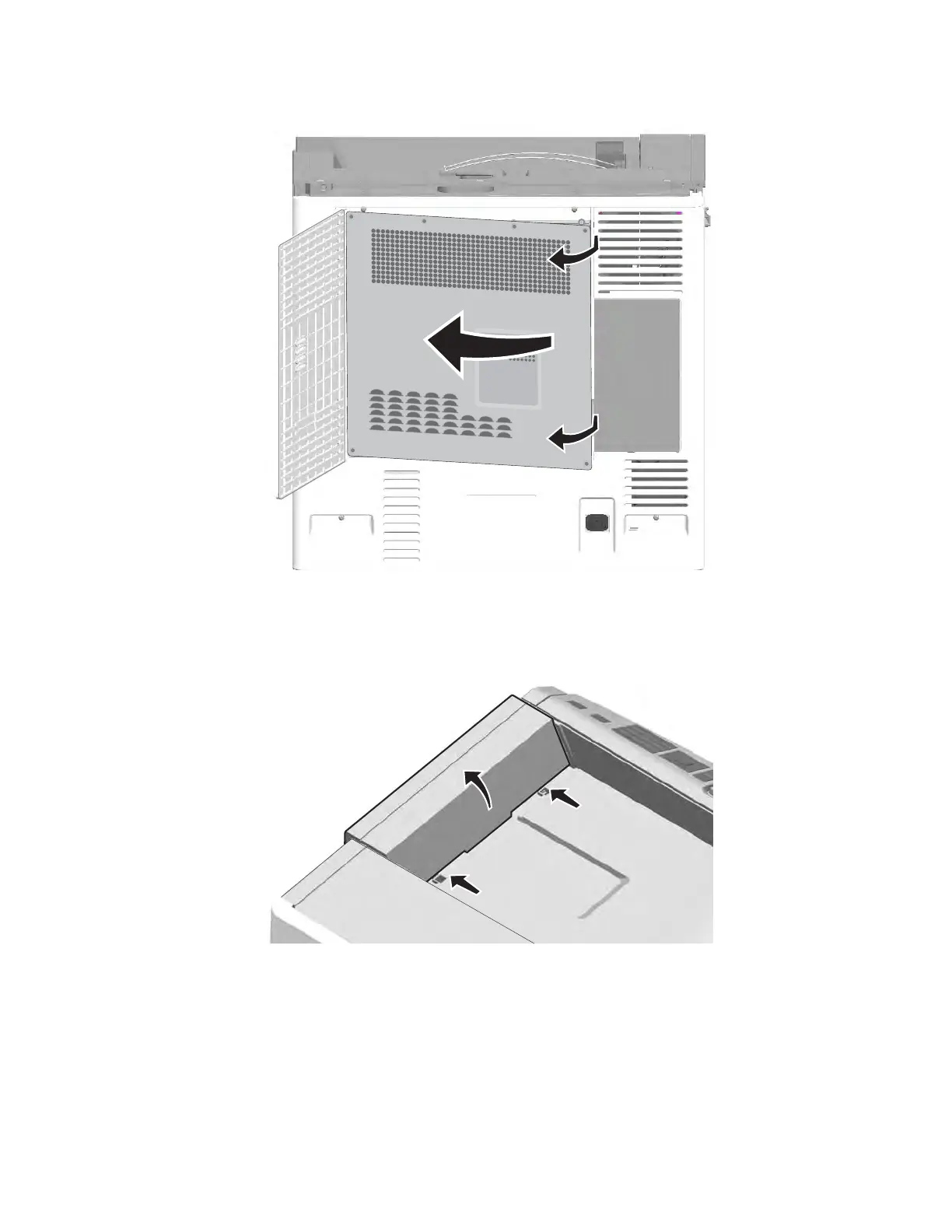

2. Swing the shield open about an inch, and slide the shield to the left to remove the shield.

Top cap cover removal

See “Top, right, and front covers” on page 7-3 for the part number.

1. Squeeze the cover and rock it back to disengage the latches.
