4-312 Service Manual

5062

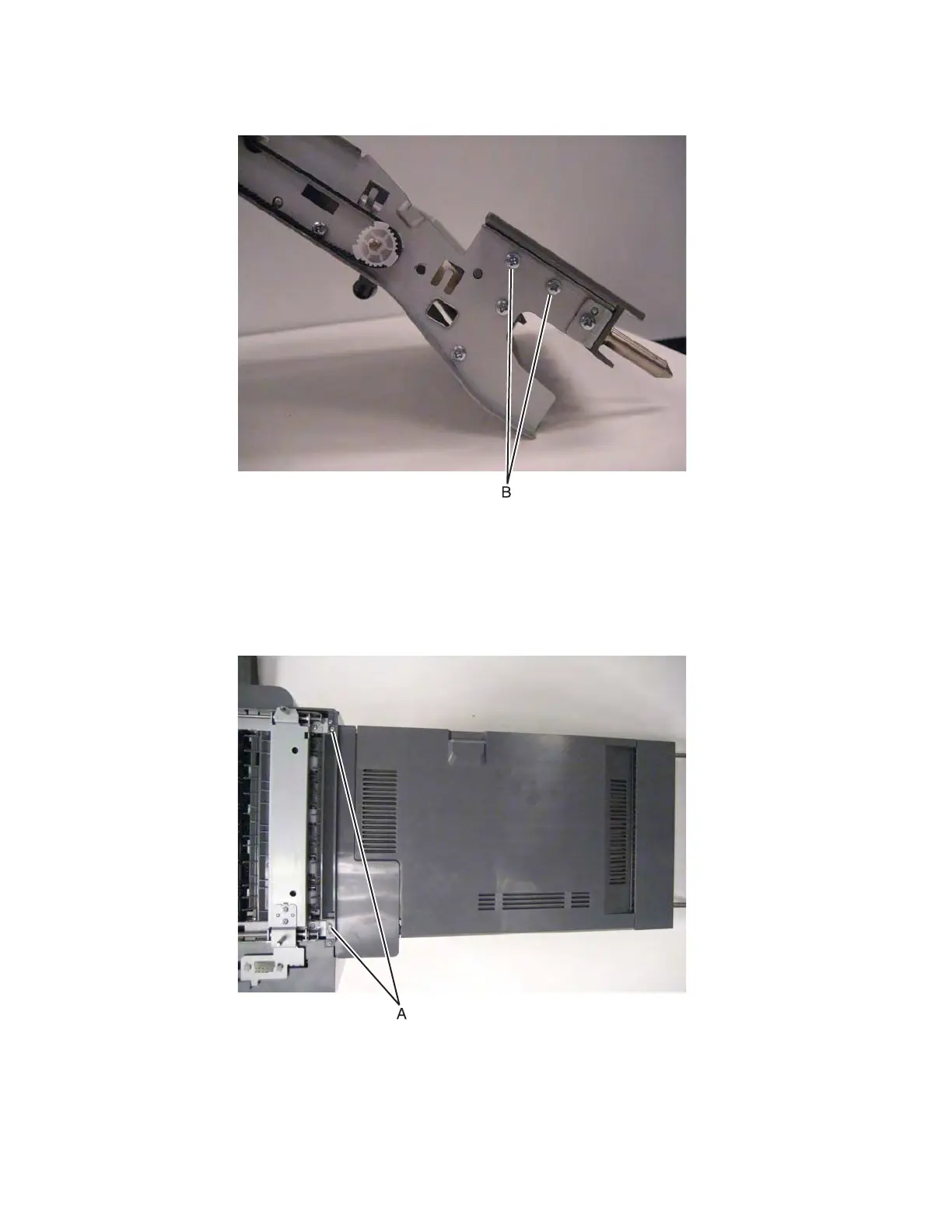

5. Remove two screws (B), and then remove the cover.

HTU top right cover removal

1. Remove all output options from the printer.

2. Remove the rear standard bin cover. See “HTU rear standard bin cover removal” on page 4-296.

3. Remove two screws (A) from the top.
