4-36 Service Manual

5062

Bin-full flag removal

See “Top, right, and front covers” on page 7-3 for the part number.

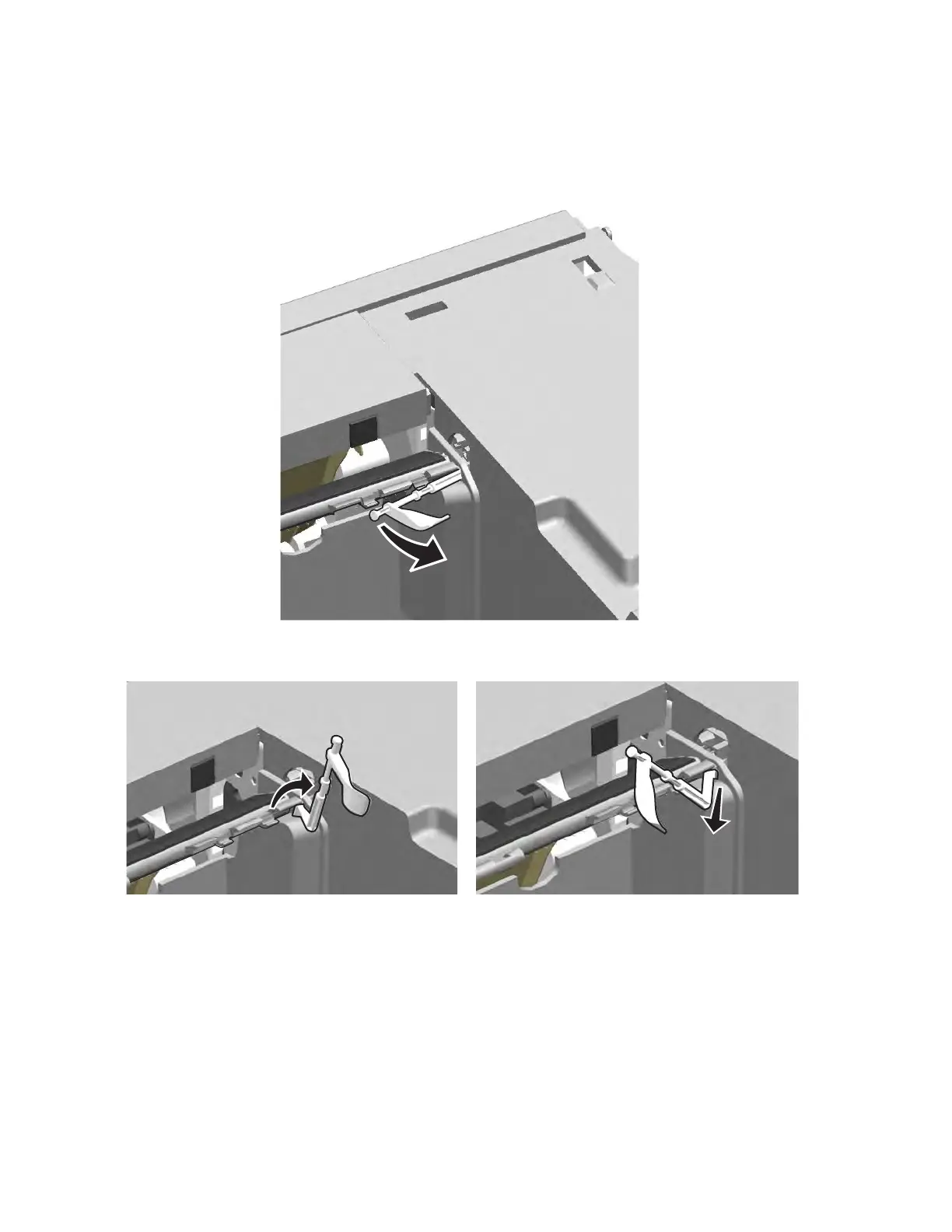

1. Pull the flag forward out of the clips.

2. Rotate the flag, and pull to remove it.
