Pick arm stuck down service check
Step Questions / actions Yes No

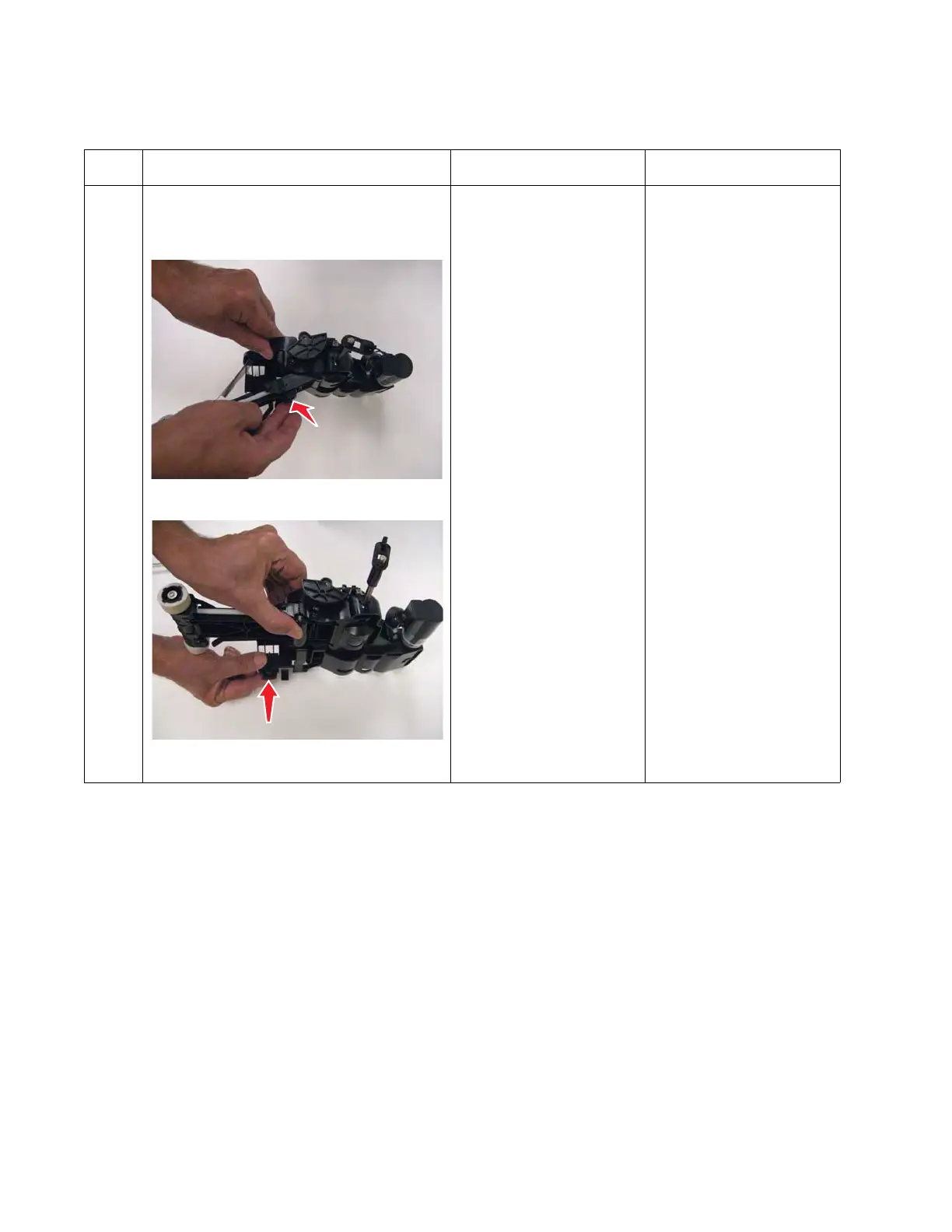

1 With the assembly still in the printer, push up
on the bar on the bottom of the pick arm to
raise the arm, and then pull the larger latch in
the back forward to lock it in place.
Did this fix the problem?
Problem solved. Replace the paper pick
mechanism assembly. See
“Paper pick mechanism
assembly removal” on
page 4-116.
To Next Page
