Lexmark C792e 5062-210 - Staging Deflector Assembly Removal

Repair information 4-135
5062
Staging deflector assembly removal
See “Left” on page 7-11 for the part number.

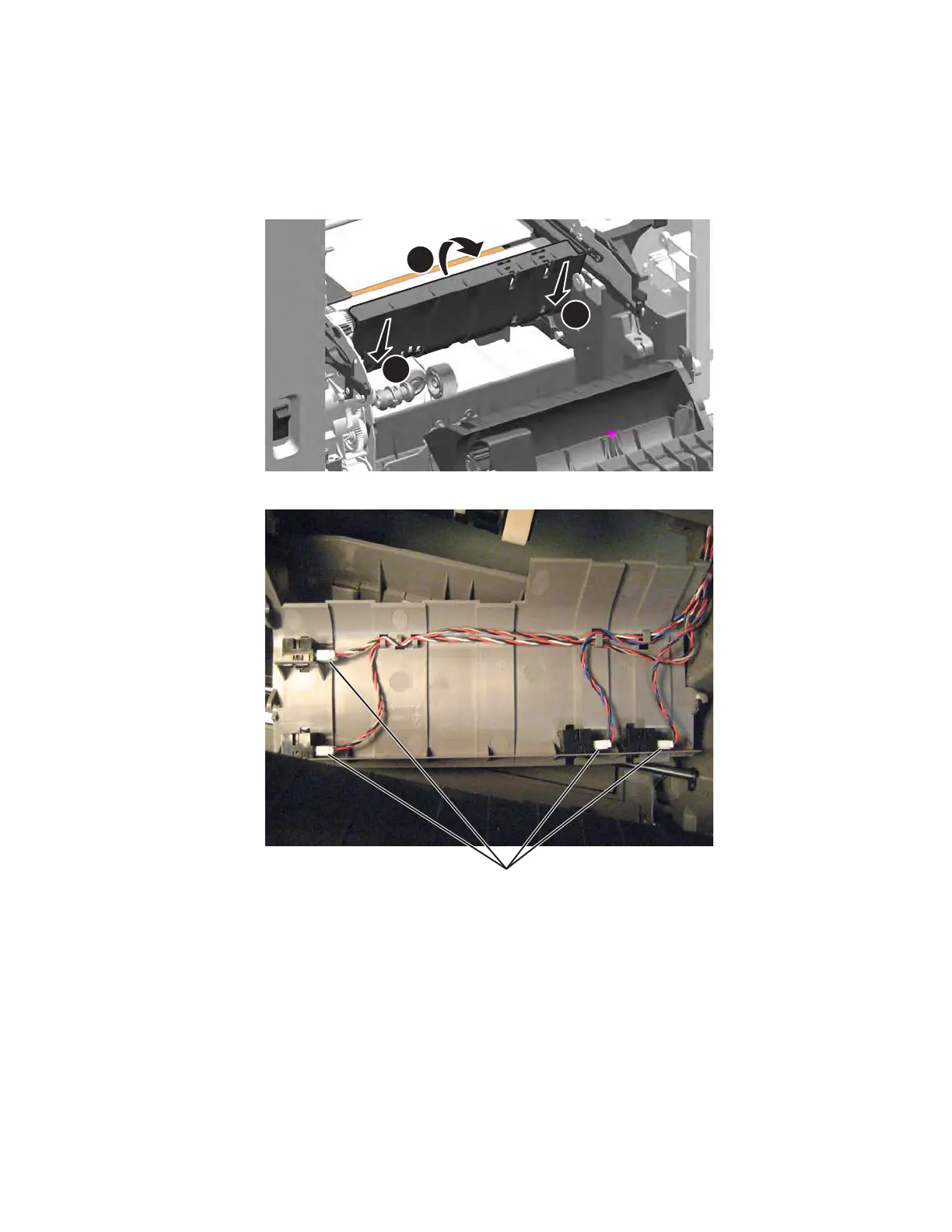

1. Remove the ITU assembly. See “ITU assembly removal” on page 4-72.
2. Push the top of the deflector down and rotate it back to release the upper hooks.
3. Disconnect the cables (A) from the four sensors.
1
1
2
A
