Repair information 4-155
5062

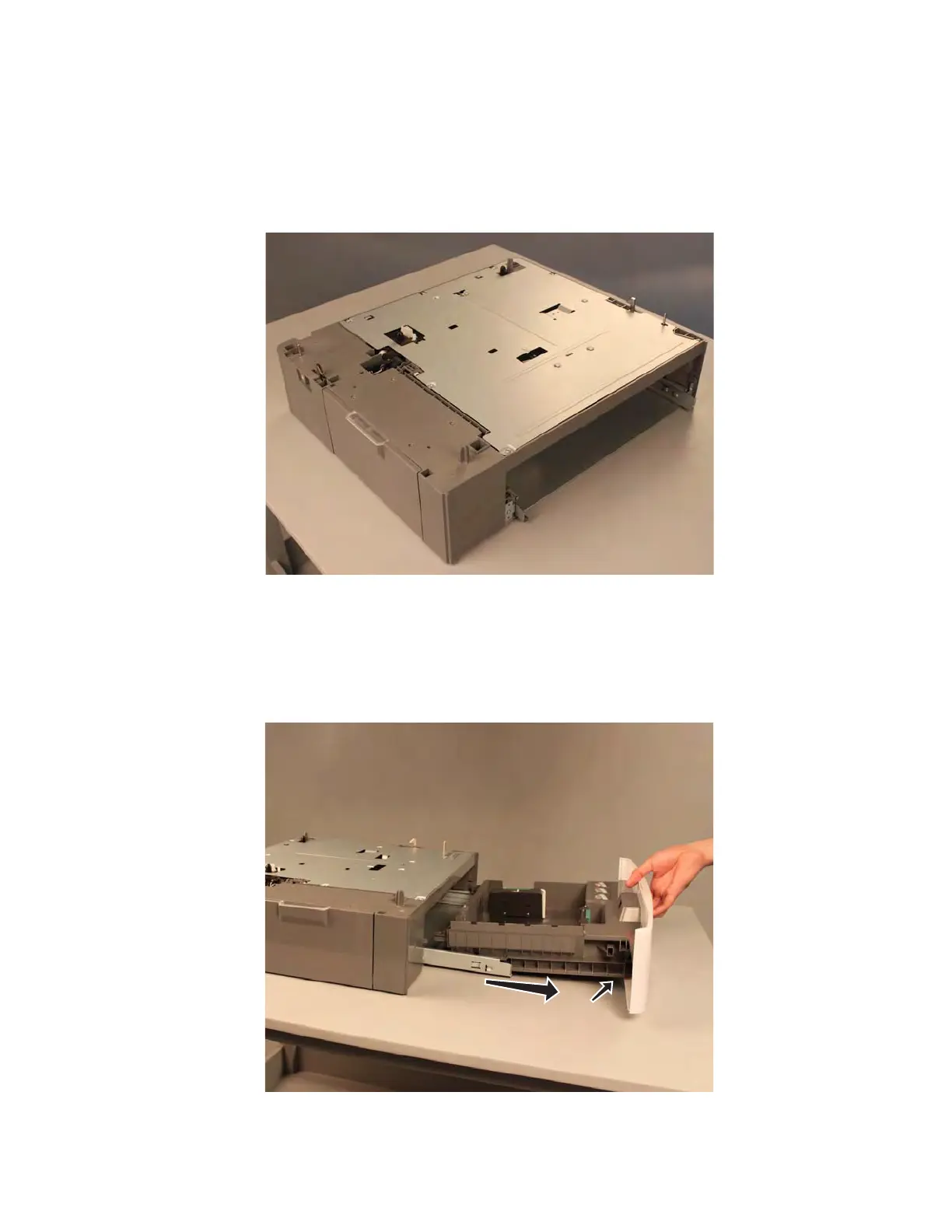

550-sheet drawer assembly removal
See “Optional 550-sheet tray” on page 7-17 for the part number.
1. Remove the 550-sheet media tray assembly from the 550-sheet drawer assembly.
The 550-sheet drawer assembly remains.
550-sheet media tray assembly removal
See“Optional 550-sheet tray” on page 7-17 for the part number.
1. Open the media tray assembly until it stops.
2. Slightly lift up the media tray.
To Next Page
