4-86 Service Manual

5062

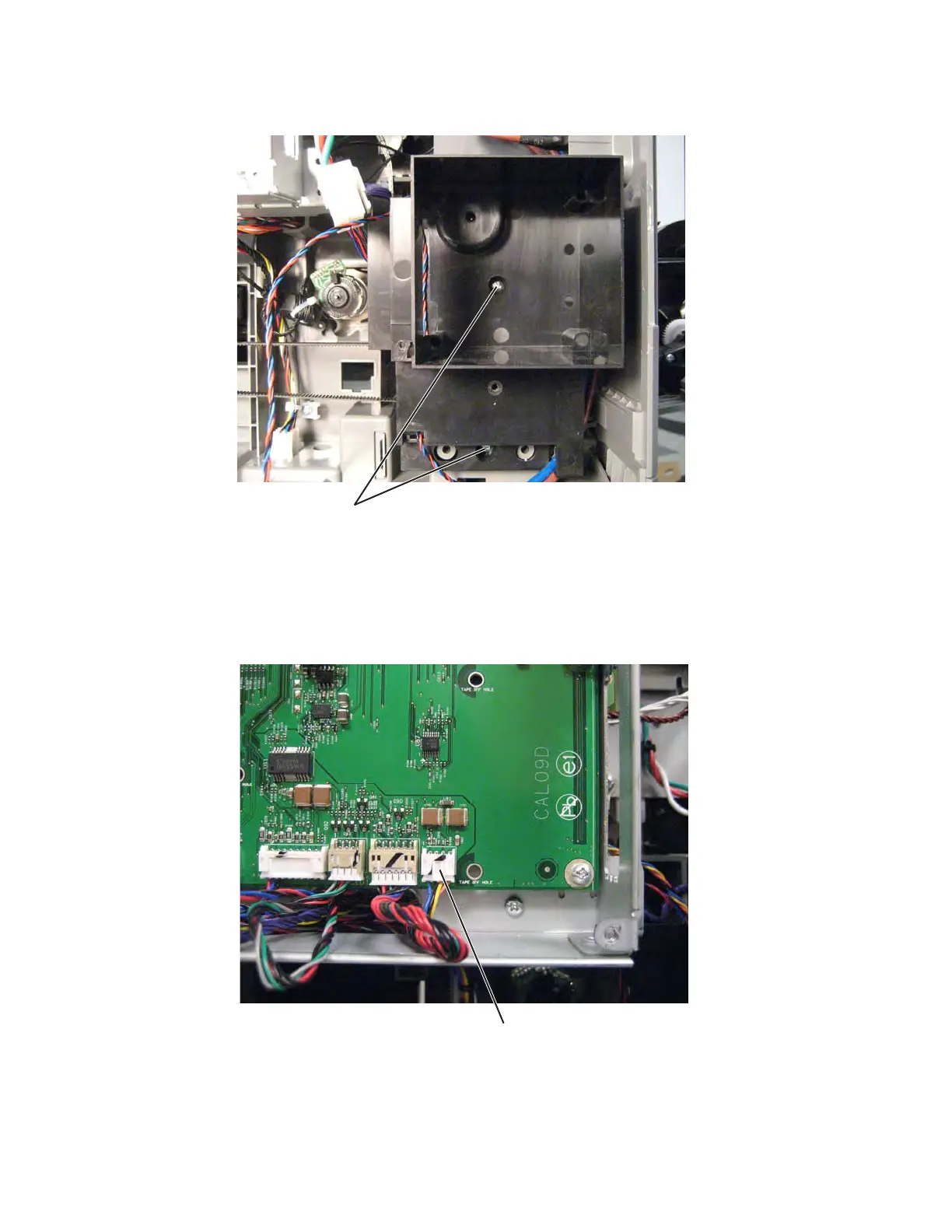

4. Remove two screws (B).

LVPS fan removal

See “Rear” on page 7-15 for the part number.

1. Remove the rear cover. See “Rear cover removal” on page 4-18.

2. Disconnect the fan cable (A) from the system board.

B (88A0323)

A
