Repair information 4-87

5062

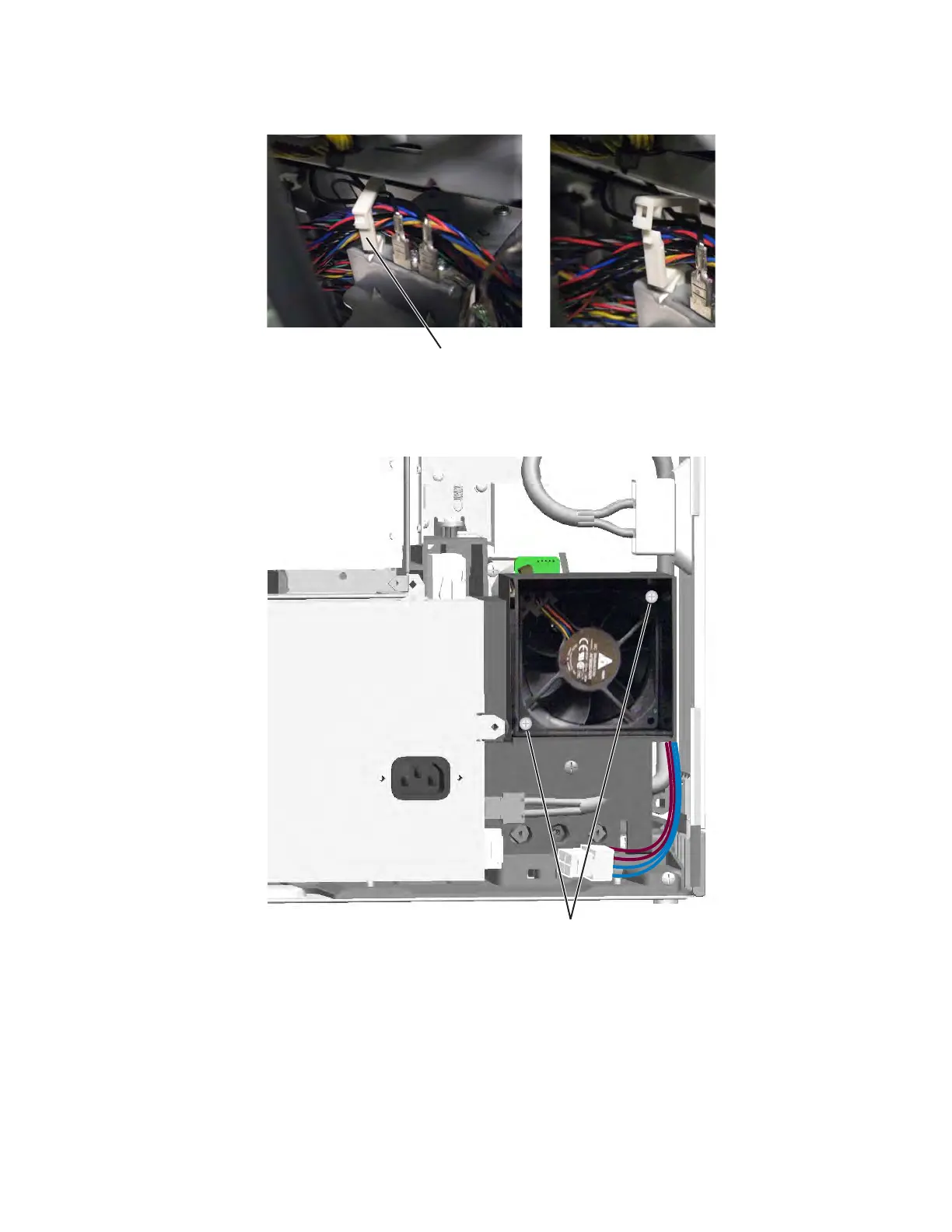

3. Push in to open the cable clip (B) behind the system board shield.

4. Feed the cable through the slot in the system board cage and the clip.

5. Remove the two screws (C).

B

C (10B1580)
