Repair information 4-121

5062

Installing and coarse aligning the printhead

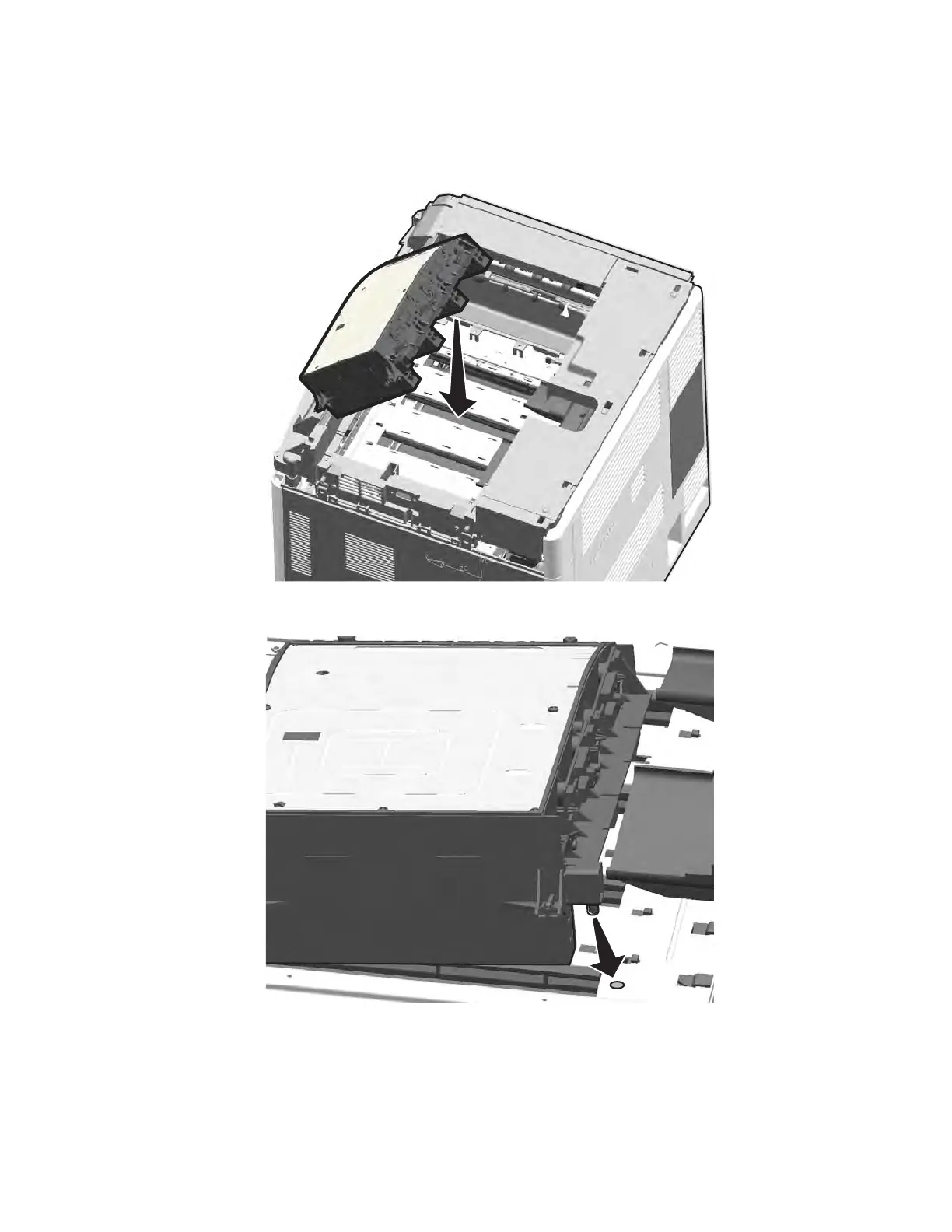

Place the printhead into the printer angled forward, sliding the adjustment screws into the slots in the

printer frame.

2. Lower the back of the printhead until the post on the back right corner drops into the hole in the printer

frame.
