Lexmark C792e 5062-210 - Multipurpose Feeder (MPF) Cover Removal

To Next Page

To Previous Page

4-16 Service Manual

5062

Multipurpose feeder (MPF) cover removal

See “Left and rear covers” on page 7-5 for the part number.

1. Remove the left access door assembly. See “Left access door assembly removal” on page 4-4.

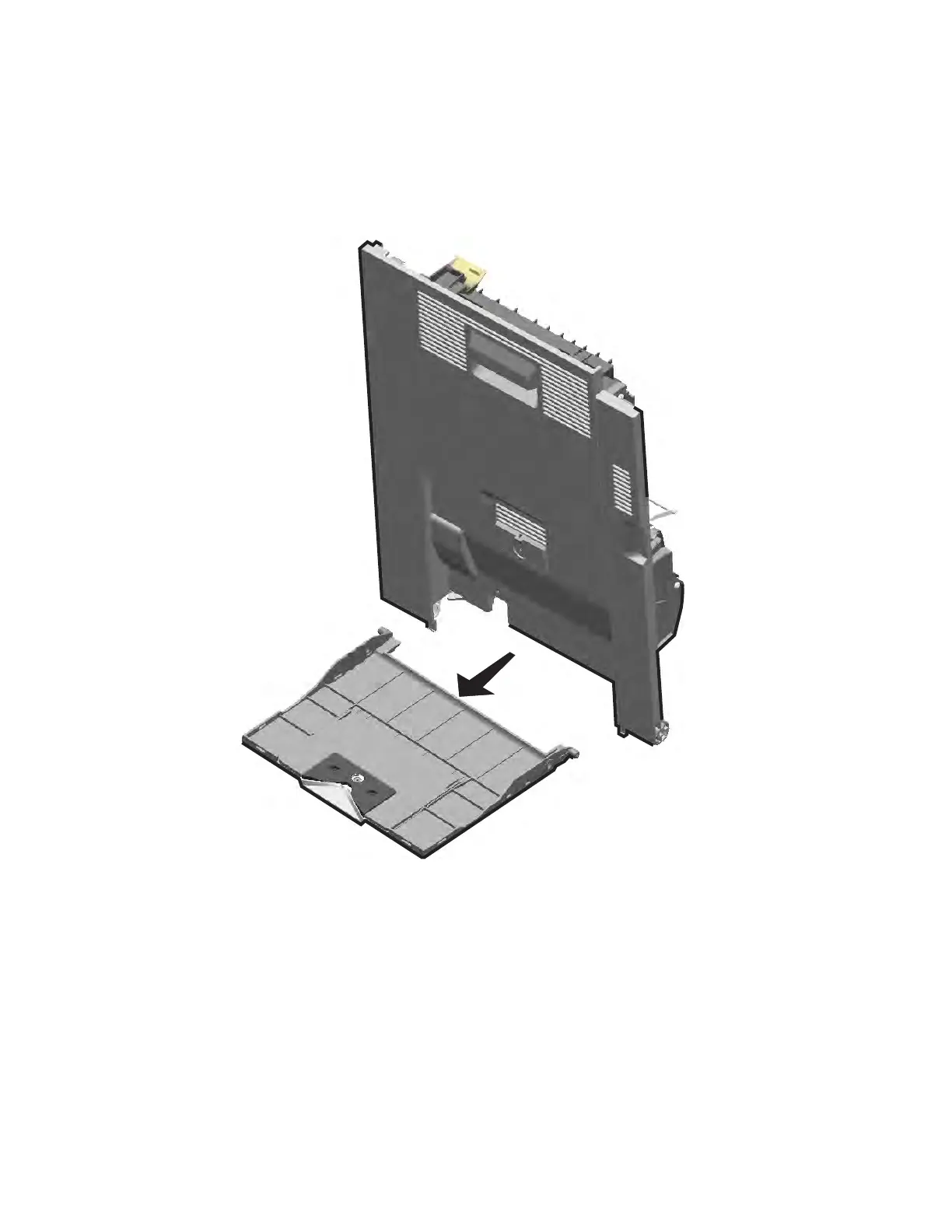

2. Separate the MPF from the left access door assembly.
