4-152 Service Manual

5062

Waste toner tray bracket removal

See “Front” on page 7-7 for the part number.

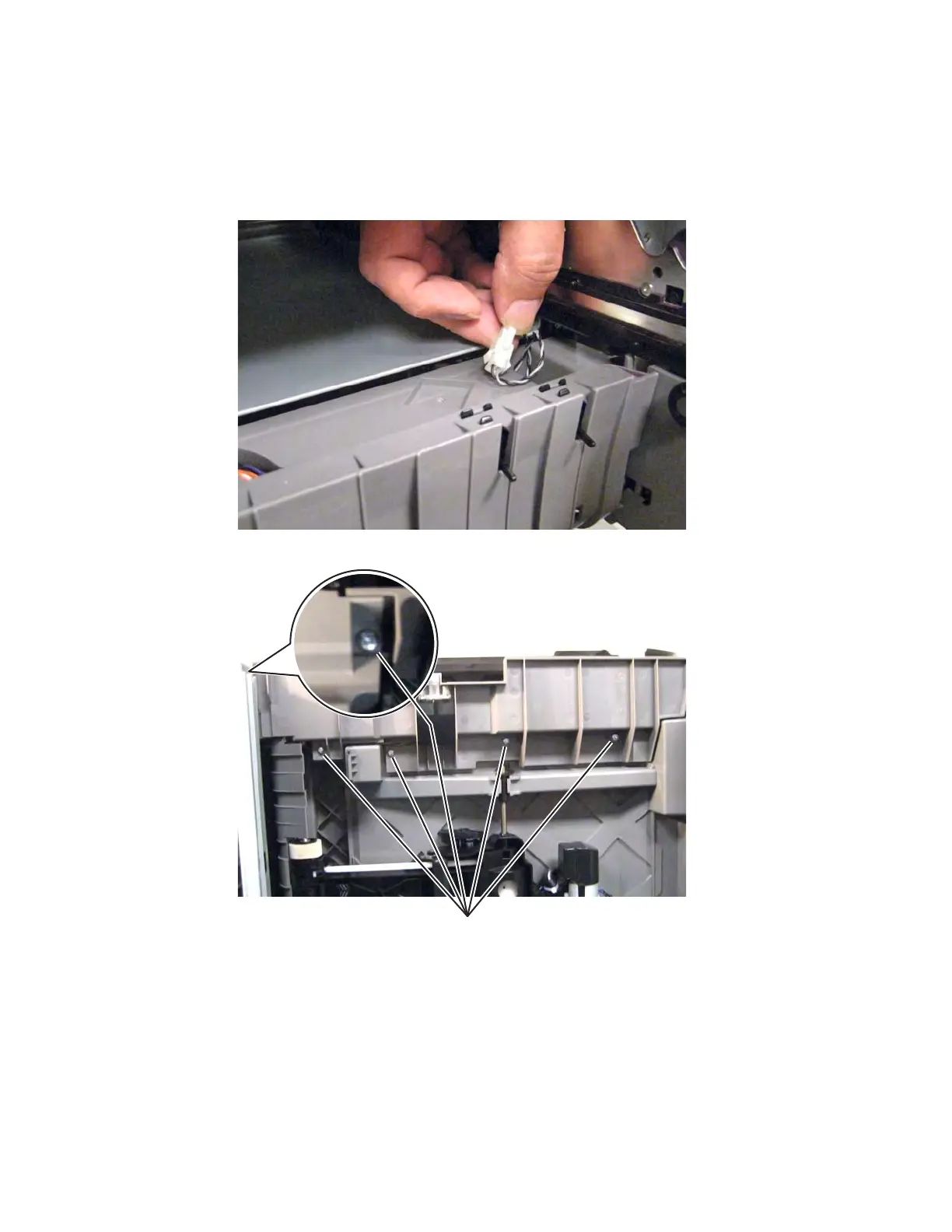

1. Remove the lower frame cable cover. See “Lower frame cable cover removal” on page 4-15.

2. Disconnect the cable.

3. Using a short screwdriver, remove five screws (D), four from the bottom of the tray and one from the front.

(88A0323)
