Repair information 4-283

5062

HTU lower redrive guide removal

1. Remove all output options from the printer.

2. Remove the upper guide. See “HTU upper guide removal” on page 4-315.

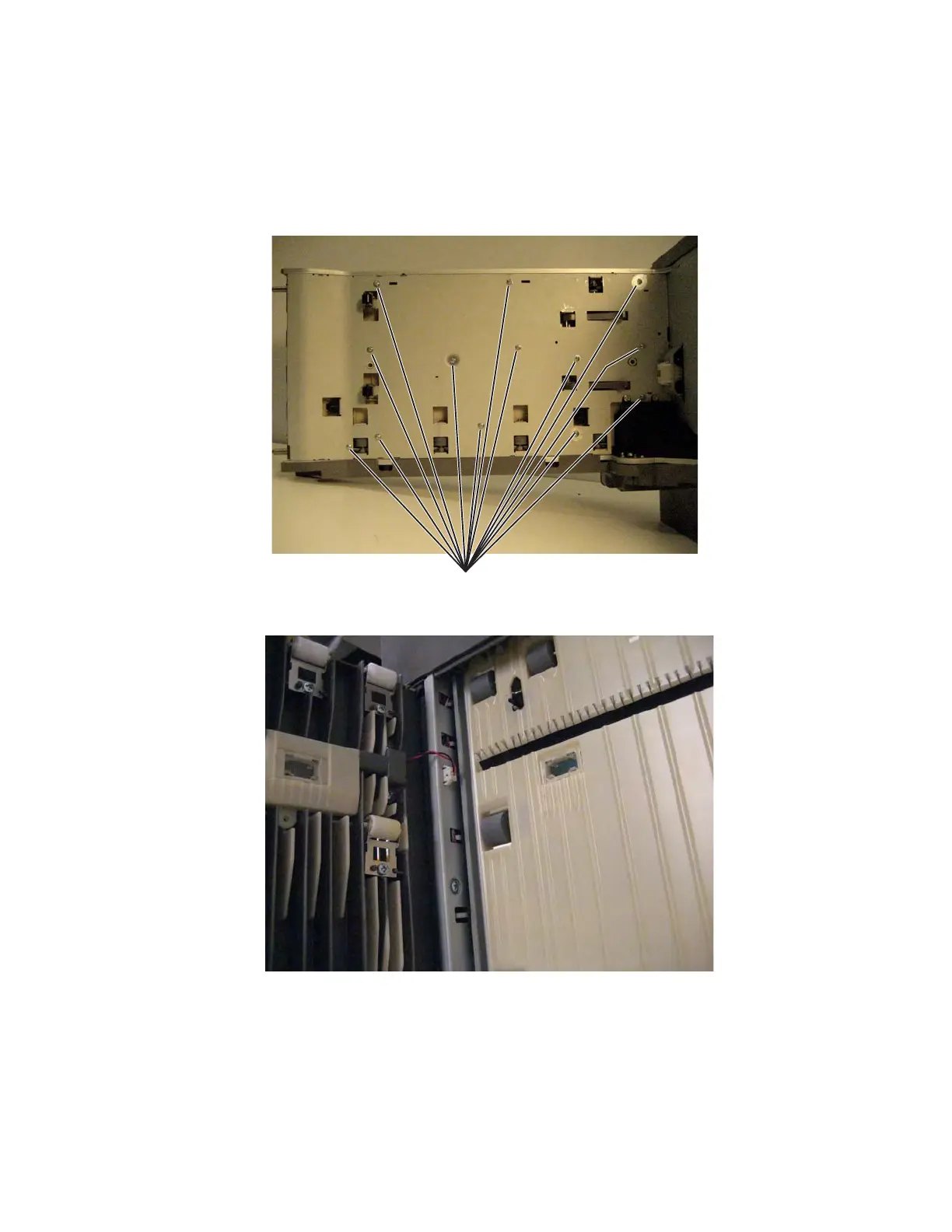

3. Remove 13 screws (A) from the bottom of the transport unit..

4. Press the tabs to remove the connector from the rear frame.
