4-284 Service Manual

5062

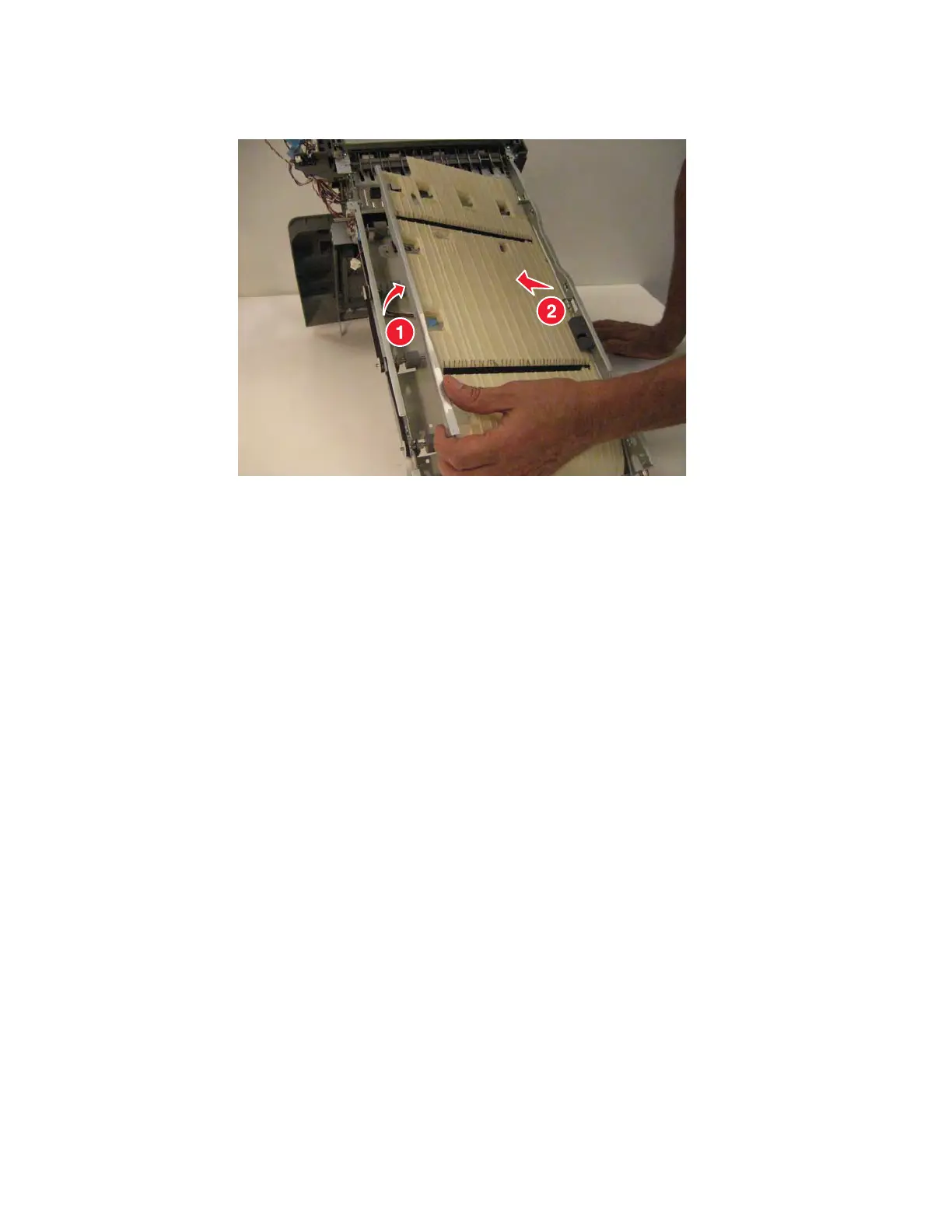

5. Lift the back edge of the plate, and then slide the plate to the rear to remove it.

HTU option hook removal

1. Remove all output options from the printer.

Front hook

a.

Remove the front standard bin cover. See “HTU front standard bin cover removal” on page 4-280.
