4-258 Service Manual
5062

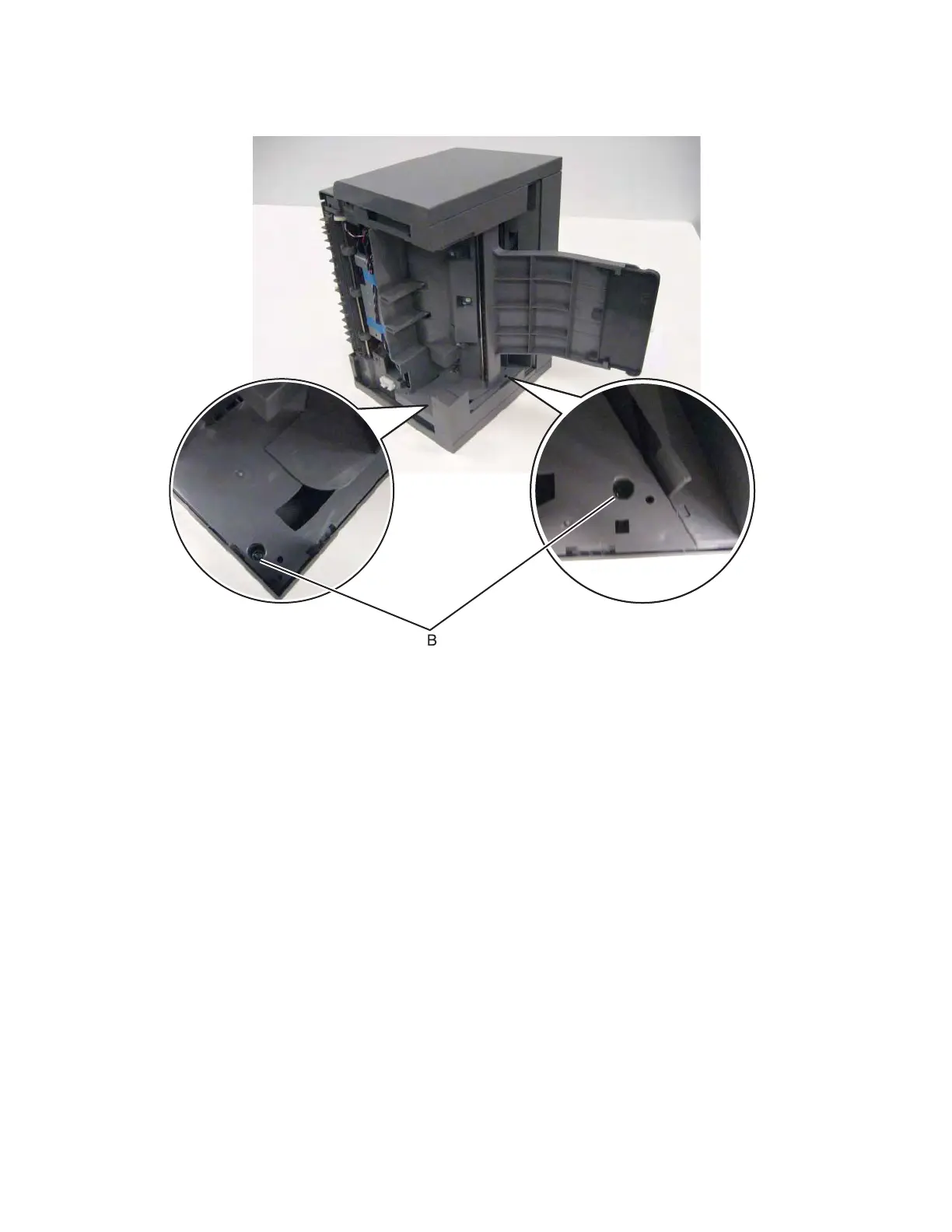

4. Remove the two screws (B) on the inside of the exit bin compartment.
5. Pull out on the right side of the cover to disengage the tabs, and remove the cover.
Finisher or stacker sensor (bin-full receive) removal
See “Finisher assembly” on page 7-23 for the part number.
1. Remove the option from the printer.
2. Remove the option rear cover. See “Finisher or stacker rear cover removal” on page 4-257.
