Lexmark C792e 5062-210 - 550-Sheet Tray Pick Assembly Removal

Repair information 4-165
5062

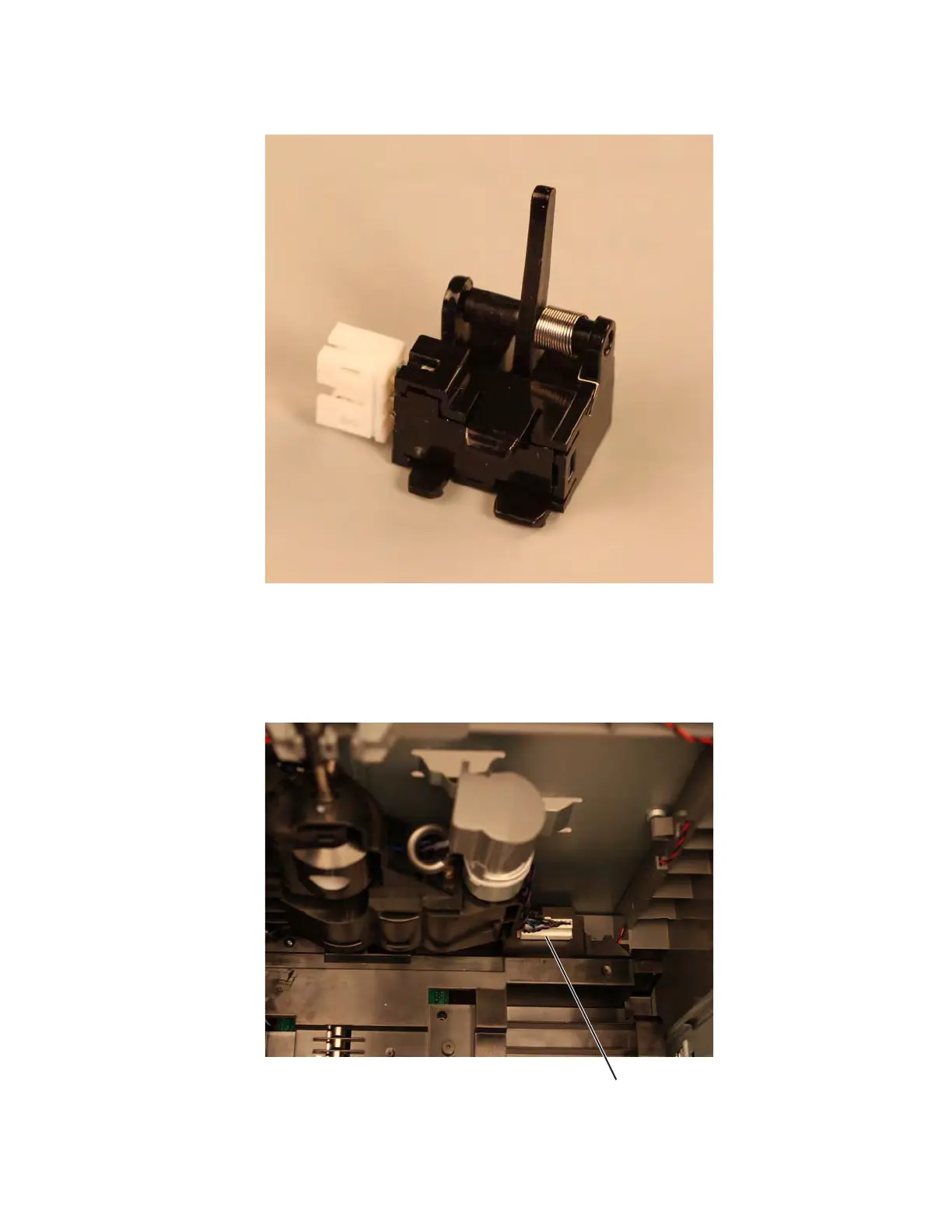

4. Remove the pass thru sensor.
550-sheet tray pick assembly removal
See“Optional 550-sheet drawer assembly” on page 7-19 for the part number.
1. Remove the media tray assembly. See “550-sheet media tray assembly removal” on page 4-155.
2. Disconnect the pick assembly connector (A) from the drive assembly.
A
