Lexmark C792e 5062-210 - Finisher or Stacker Standard Output bin LED and LED Lens Removal

4-264 Service Manual
5062
Finisher or stacker standard output bin LED and LED lens removal
See “Finisher assembly” on page 7-23 for the part number.
1. Remove the option from the printer.

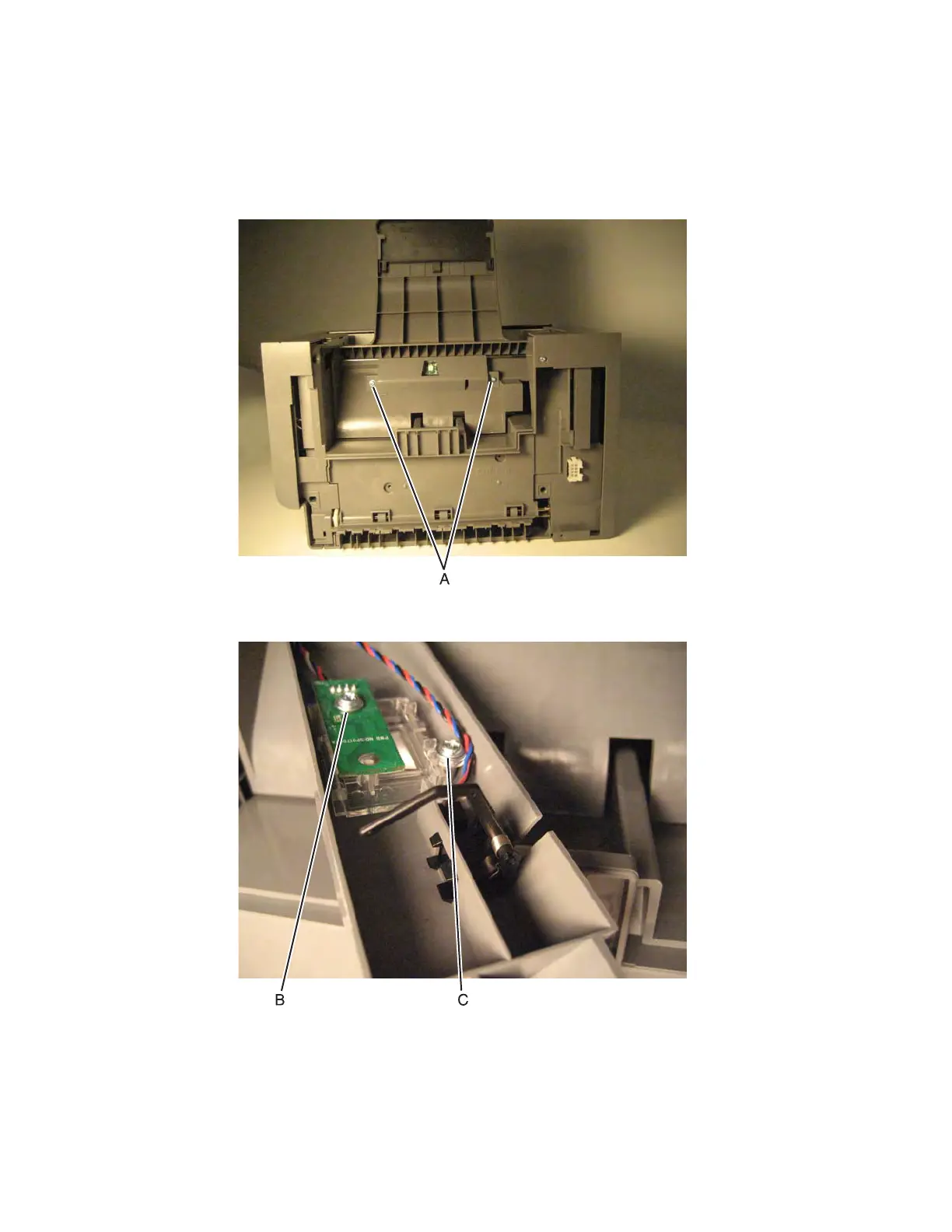

2. Remove two screws (A), and pull out the sensor cover.
3. To remove the LED, remove the screw (B), and then disconnect the cable from the LED card.
4. To remove the lens, remove the screw (B) and the screw (C), and then remove the lens.
