Lexmark C792e 5062-210 - Cartridge Memory Block Removal

4-42 Service Manual
5062

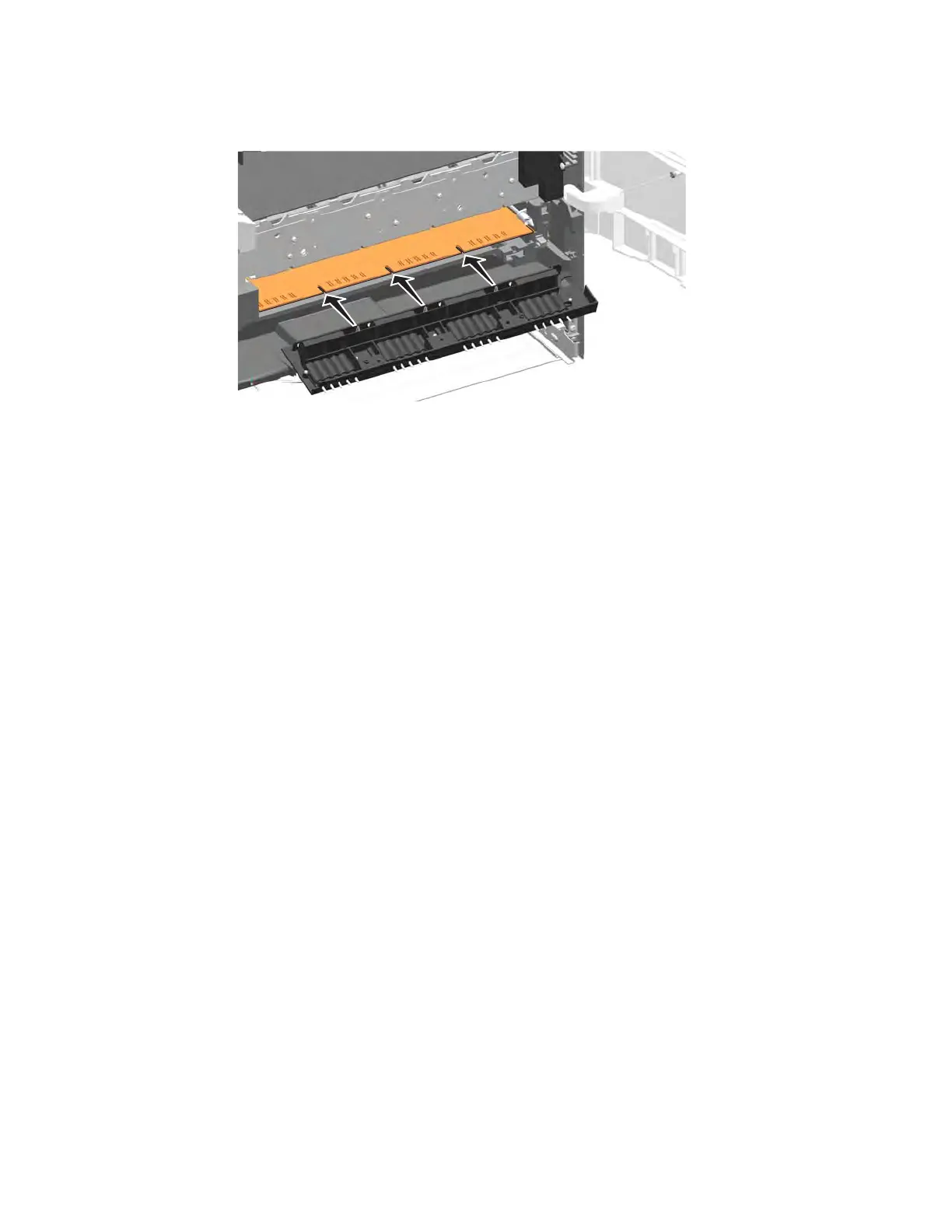

Installation note: Be sure to line up the notches in the HVPS board with the ridges on the cartridge contact block
assembly.
Cartridge memory block removal
See “Front (continued)” on page 7-9 for the part number.
1. Remove the ITU assembly. See “ITU assembly removal” on page 4-72.
2. Remove the system board shield. See “System board shield removal” on page 4-26.
