6-2 Service Manual

5062

Redrive parts packet

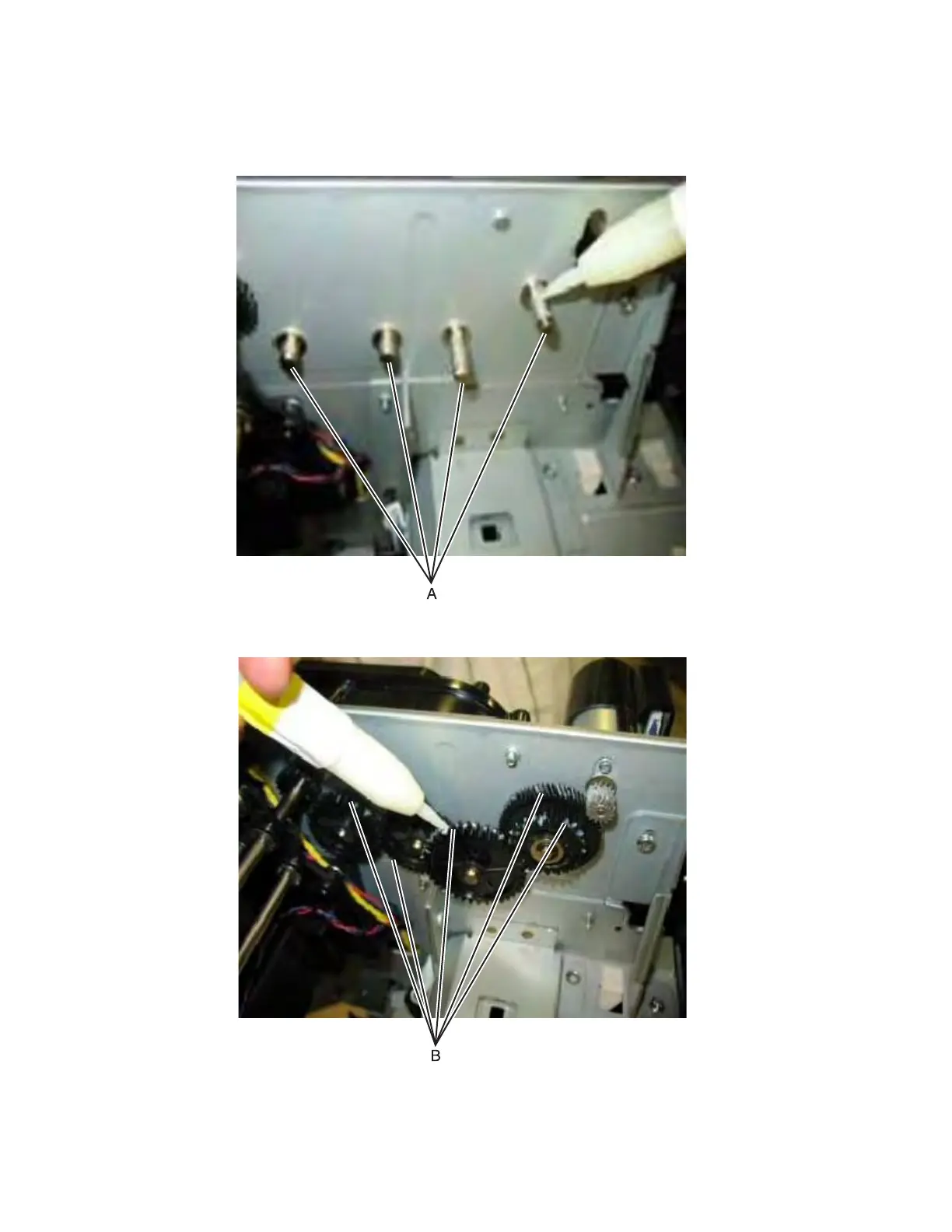

1. Using the 739A grease that came with the redrive assembly, lubricate the four posts (A).

2. Install the gears.

3. Using the 744 grease, lubricate the teeth (B) of the gears as shown.
