4-70 Service Manual

5062

Installation notes:

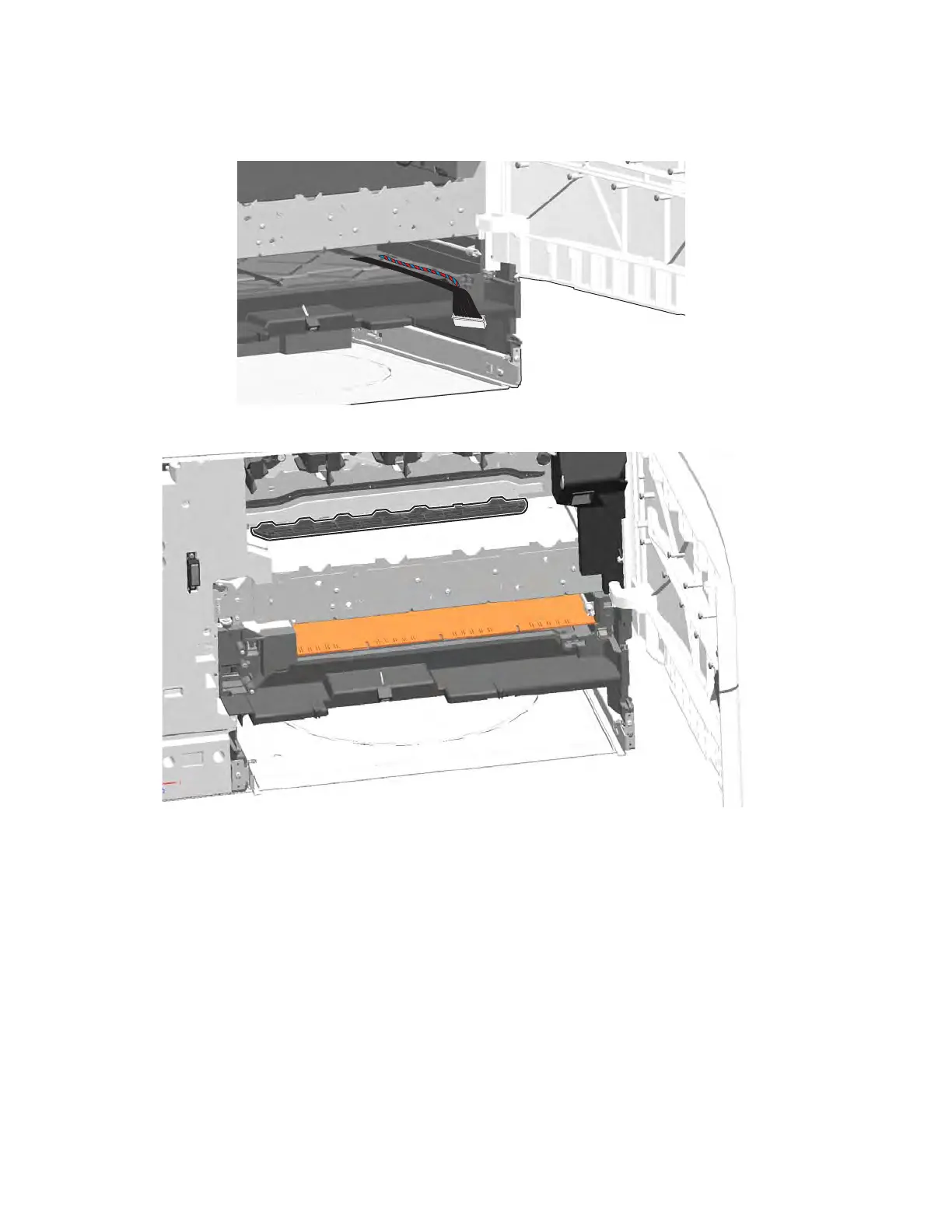

• Be sure the HVPS cable sits in the groove under the HVPS board.

• Be sure the ITU block assembly sits flat before attaching the three screws to reinstall it.
