4-256 Service Manual

5062

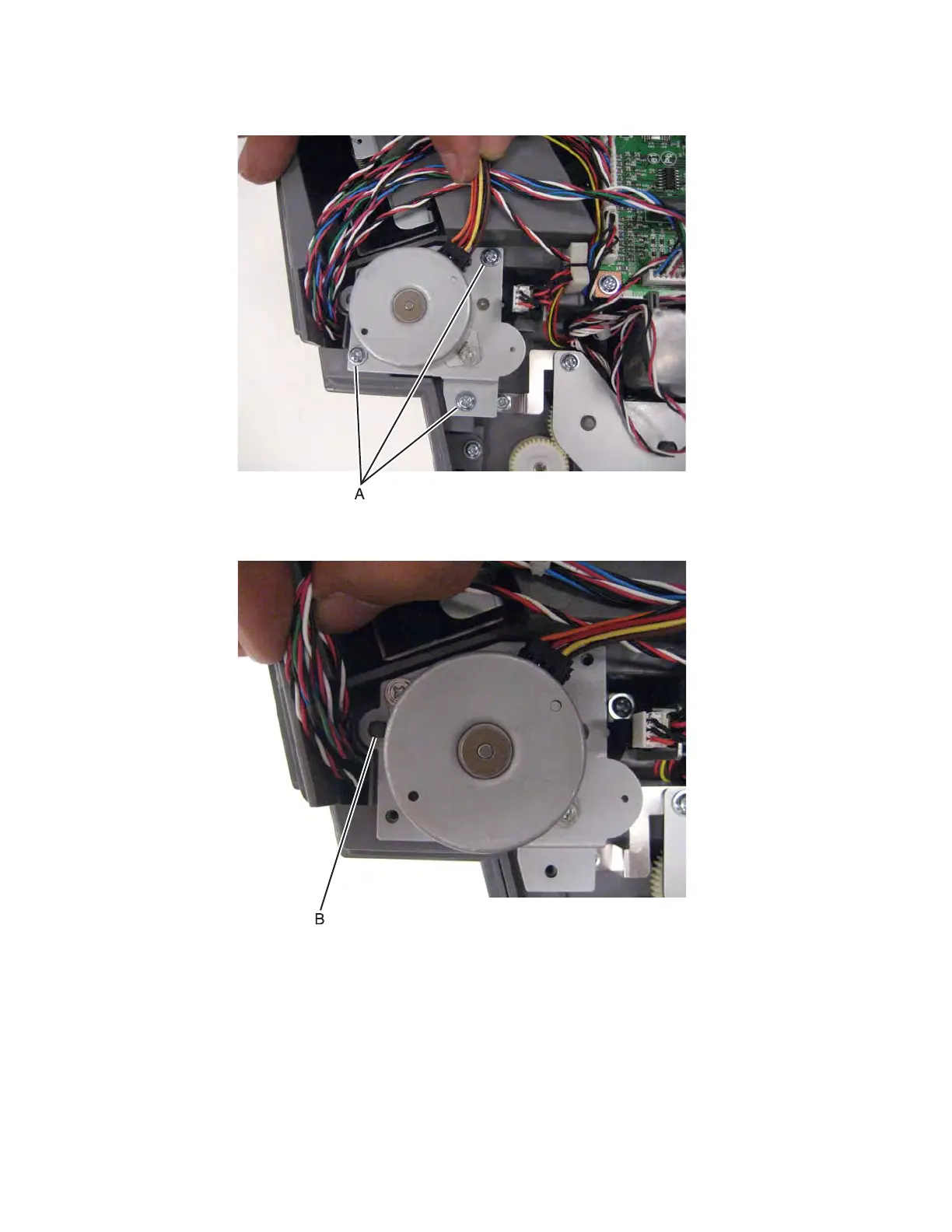

5. Remove the three screws (A) securing the two paddle drive motor assemblies.

6. Remove the paddle drive motor assembly.

Installation note: Be sure to line up the locator (B) when you install the motor.
