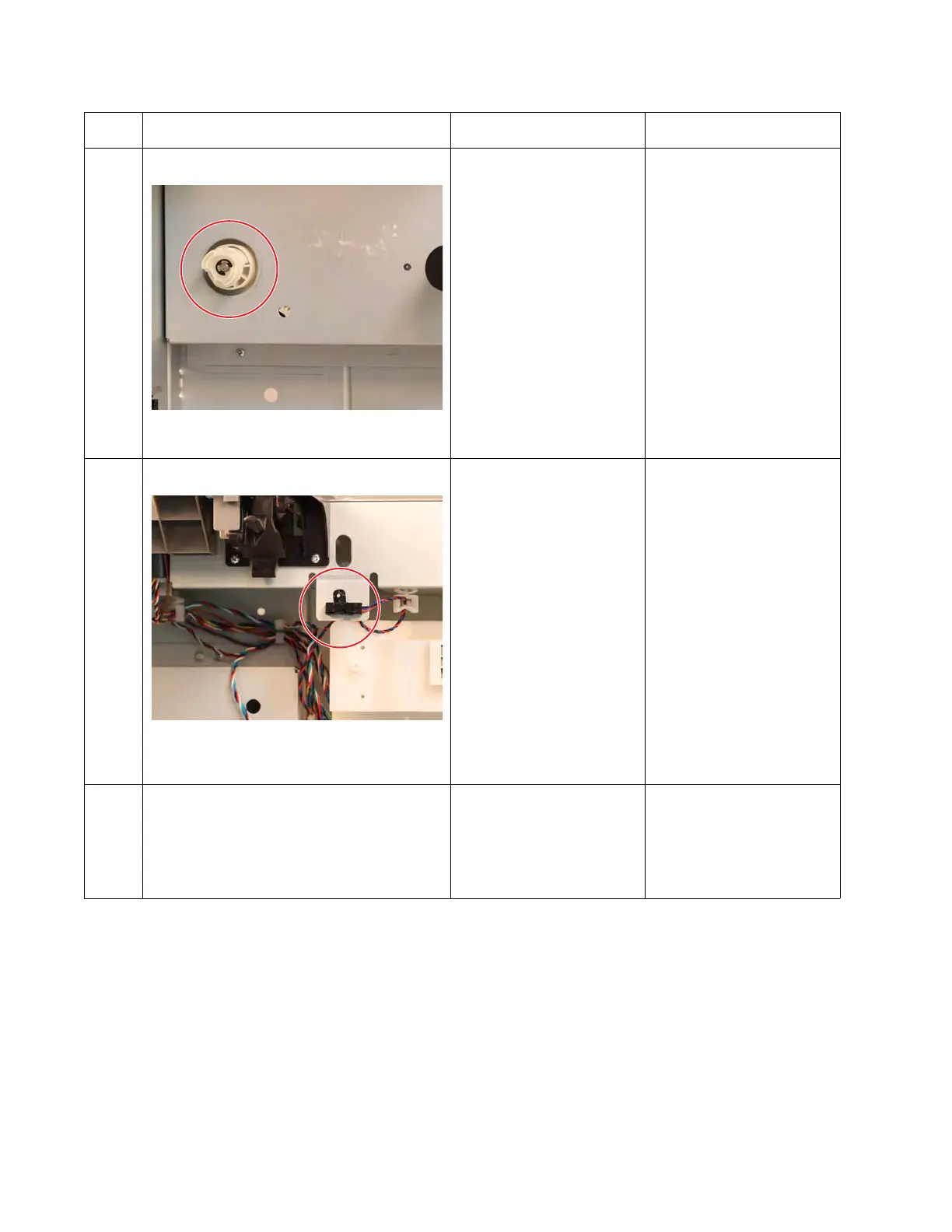

Check if the lift drive coupling gear is
damaged.
Is the lift drive coupling gear damaged?
Replace the 2000-sheet
high-capacity feeder lift
drive motor assembly. See
“2000-sheet high-
capacity feeder lift drive
motor assembly
removal” on page 4-201.
Go to step 5.
5
Check if the 2000-sheet high-capacity feeder
elevator home sensor is seated properly.
Is the elevator home sensor seated
properly?
Go to step 6. Reseat the elevator home
sensor.
6
Replace the 2000-sheet high-capacity feeder
controller card assembly. See “2000-sheet
high-capacity feeder controller card
assembly removal” on page 4-174.
Does the problem persist?
Replace the 2000-sheet
high-capacity feeder input
option.
Problem solved.
