4-62 Service Manual

5062

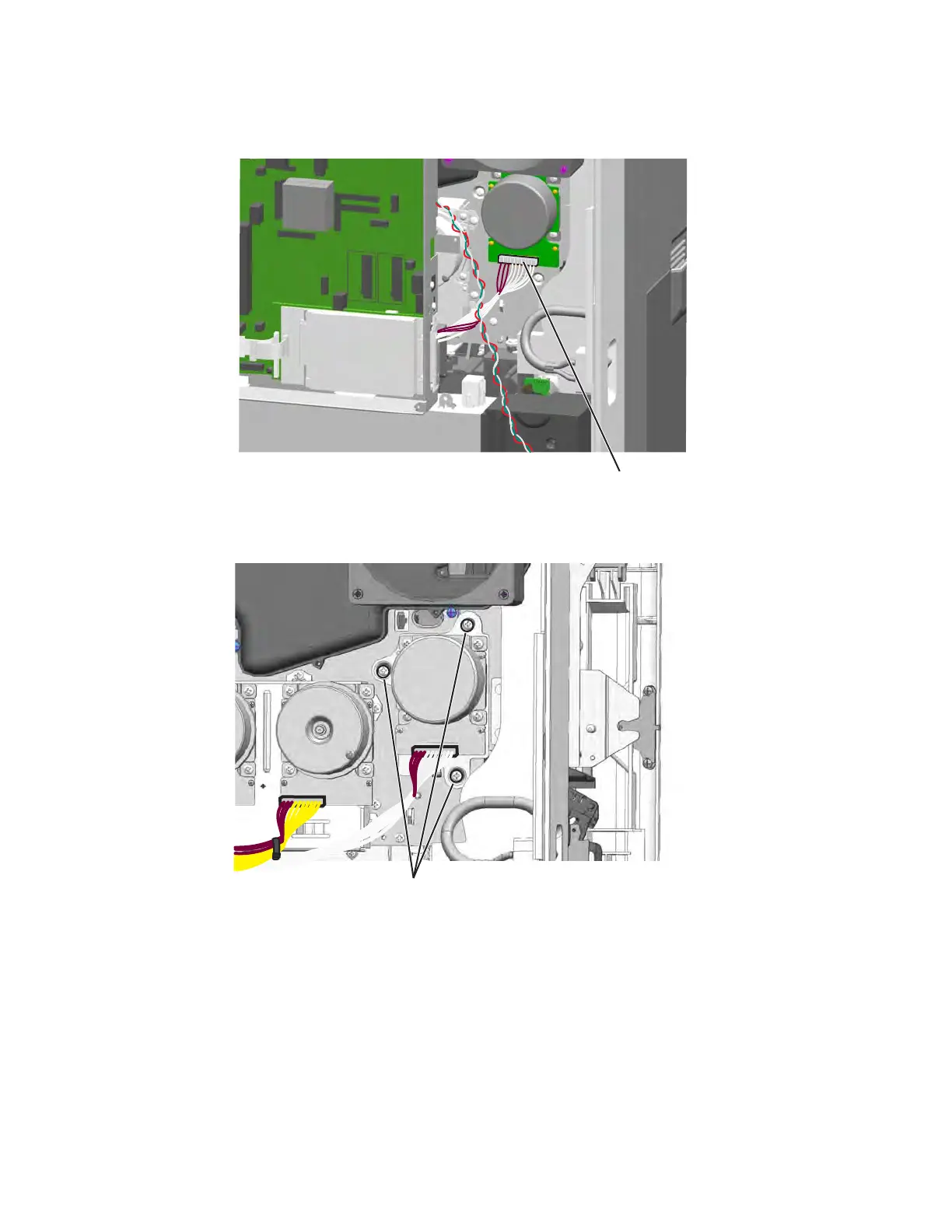

4. Disconnect the cable (B) from the fuser motor.

5. Remove the three screws (C).

6. Remove the fuser drive assembly.

Installation note: Be sure to apply grease to the gear and post using the instruction sheet and two kinds of

grease that came with the fuser drive assembly.

B

C (88A0212)
