Repair information 4-65

5062

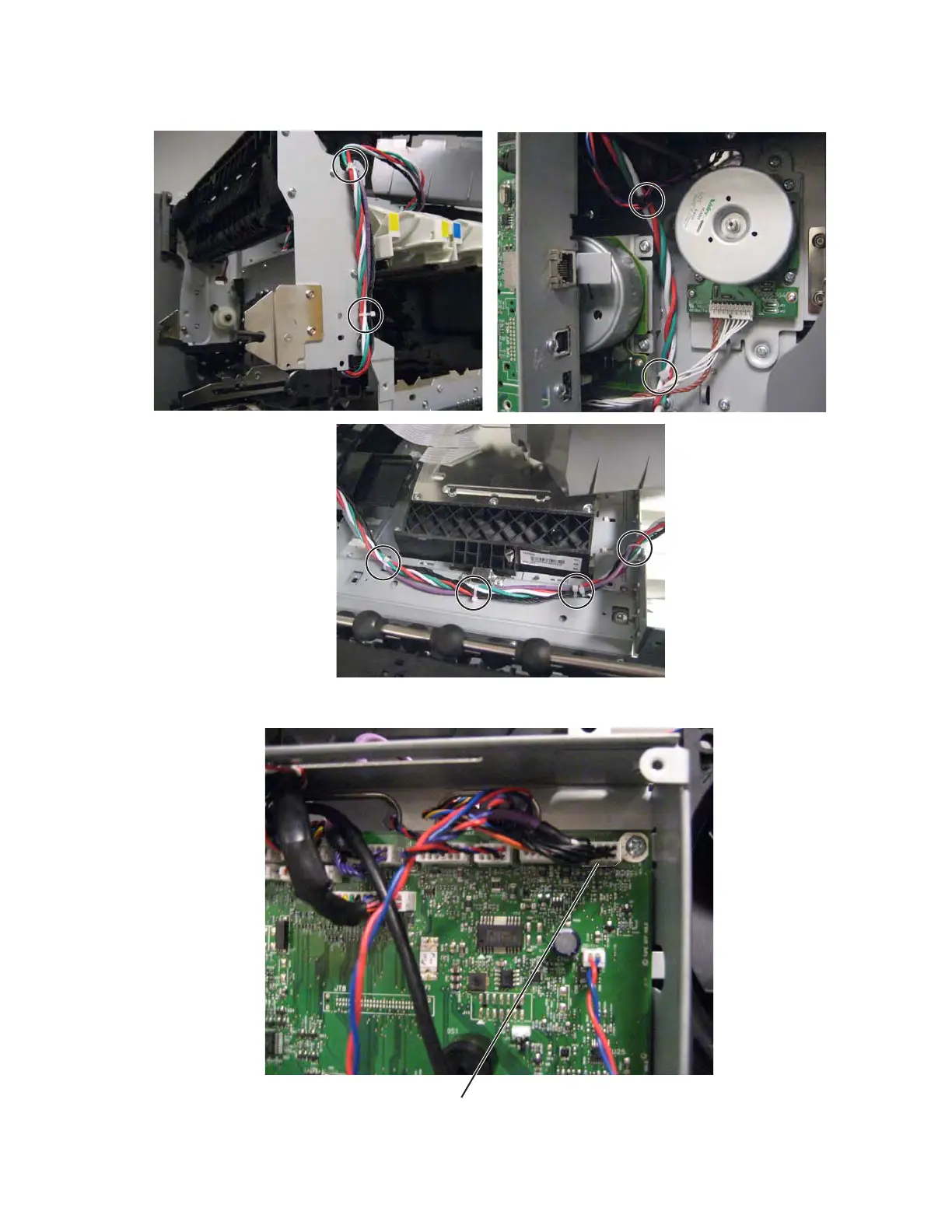

8. Clip all cable ties securing the cable.

9. Remove the system board shield. See “System board shield removal” on page 4-26.

10. Disconnect the fuser system card cable (D) from the system board.
