Repair information 4-75

5062

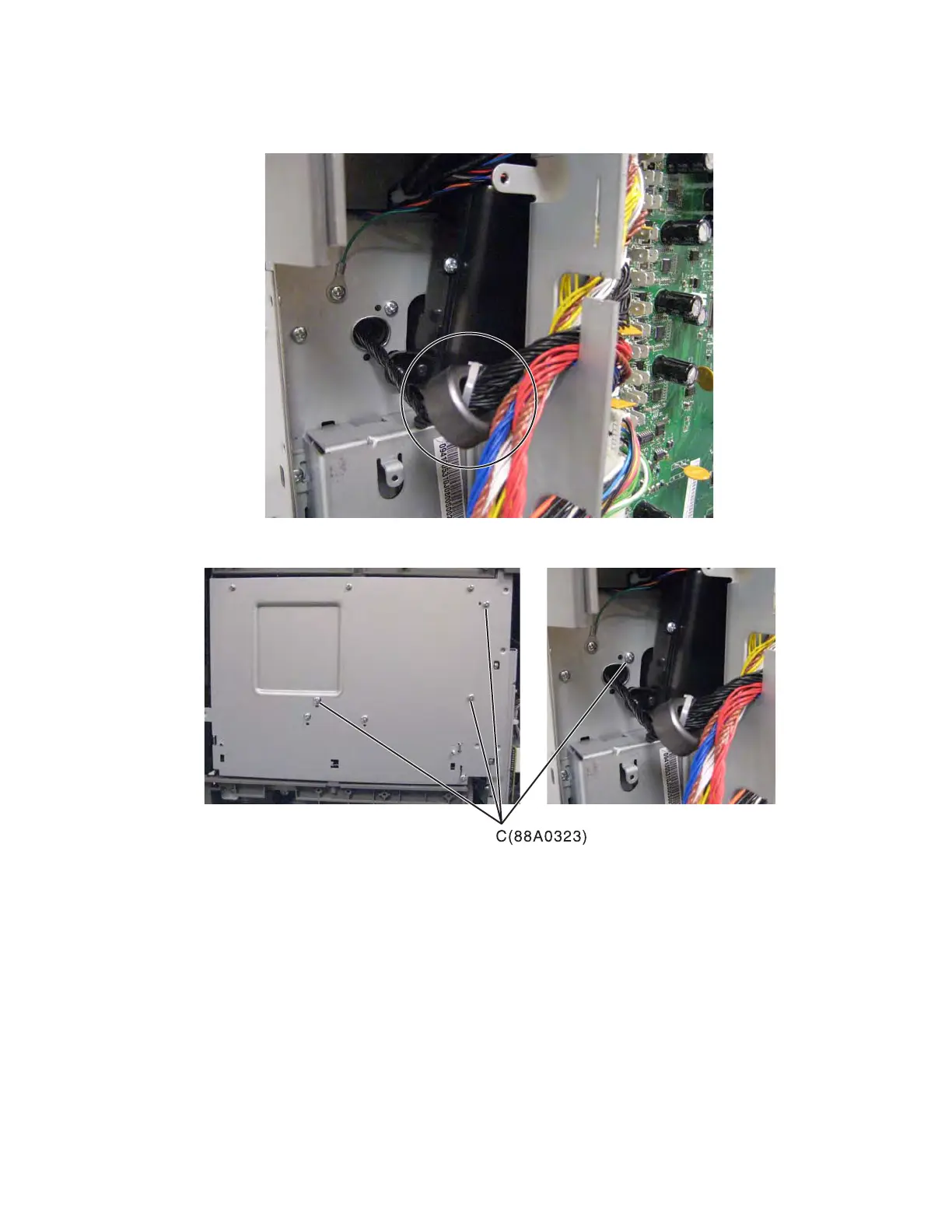

6. Clip the cable tie and remove the toroid.

Note: Be sure to replace the toroid during reinstallation.

7. From the right side and back of the printer, remove four screws (C).
