Repair information 4-93

5062

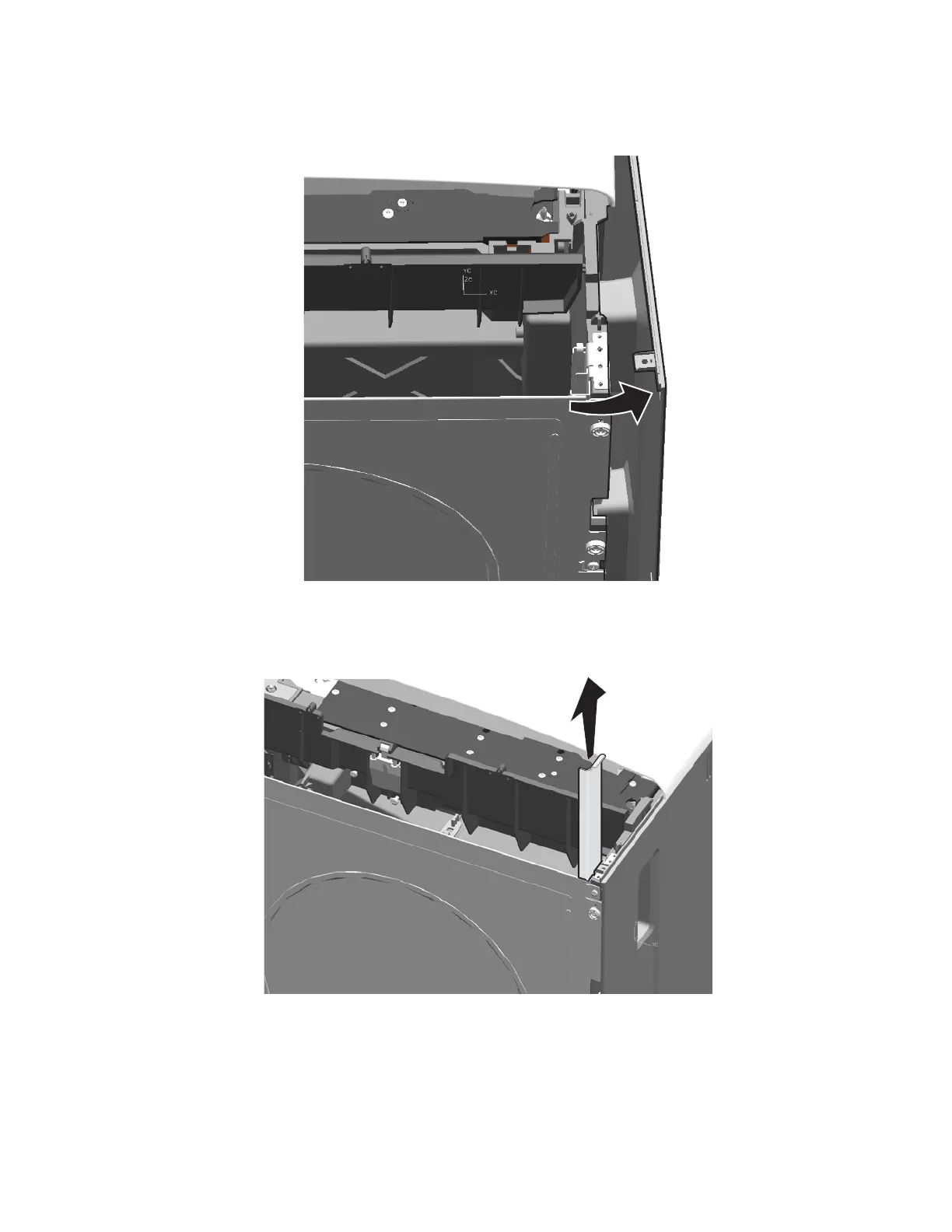

e. Pull aside the right side cover.

f. Pull up and to the left to remove the rail from the printer.
