Repair information 4-117

5062

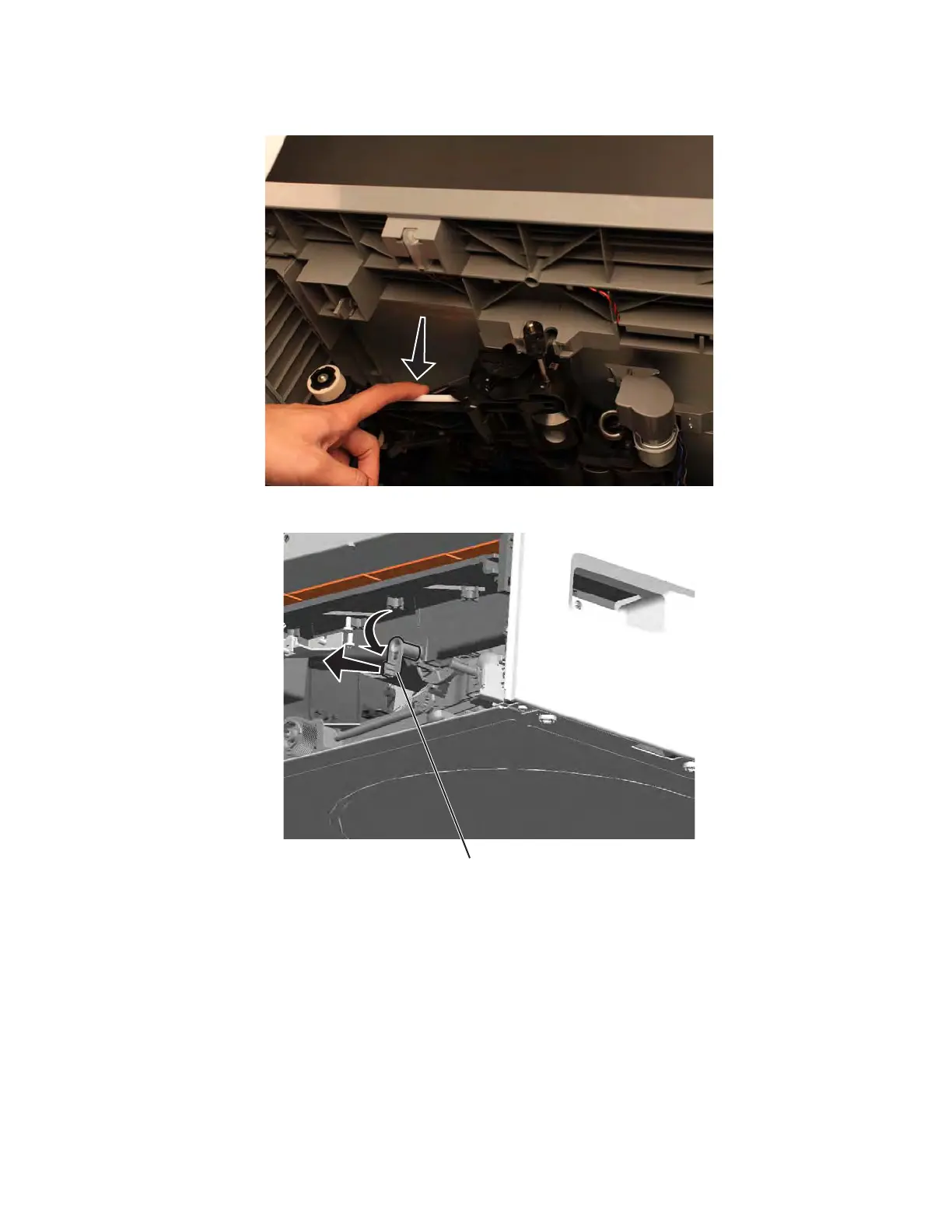

3. Lower the pick arm all the way.

4. Rotate the release lever (B), pull it toward you, and then lower the assembly to remove it from the printer.

B
