4-138 Service Manual

5062

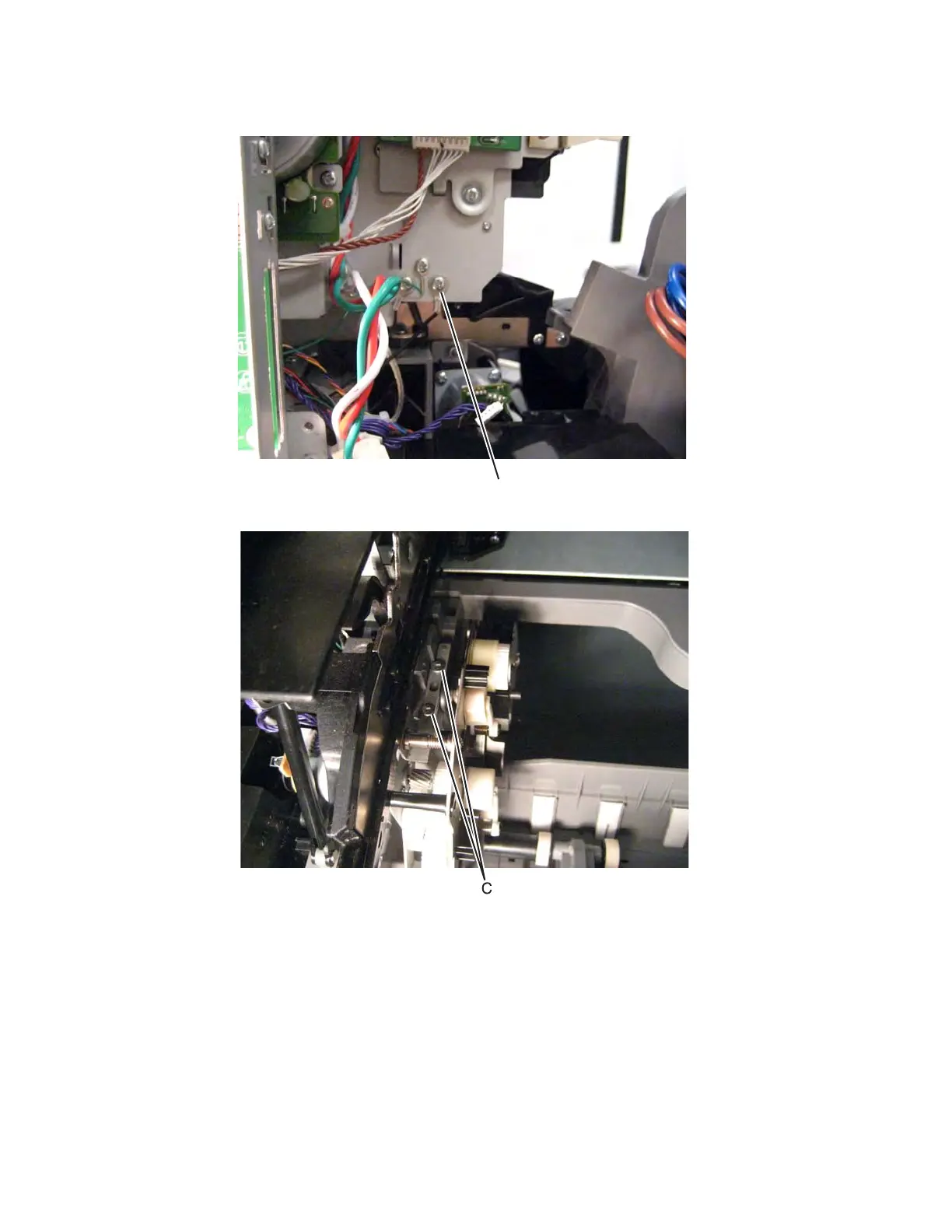

8. Remove the screw (A) to remove the ground cable.

9. Remove two screws (C) from the ITU DS roller plate, and then remove the plate.

A

(88A0212)

(10J1733)
